Use and Care Manual

3
ESSENTIAL PARTS

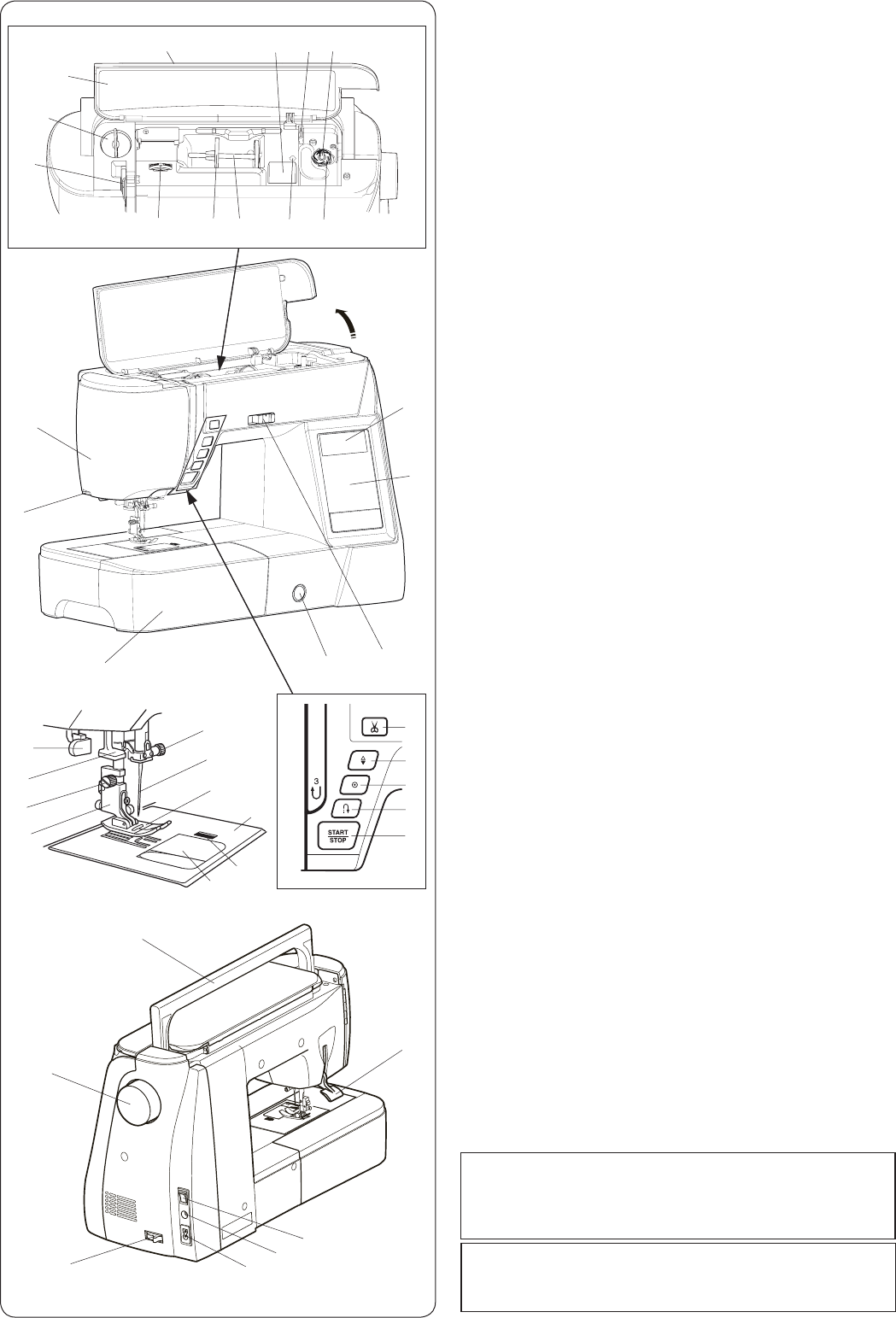

Names of Parts
@5
@6
@7
#1
#3
#4
@8
@9
#0
q
w
e
r
t
y
u
i
o
!0
!1
!2
!3
!4
!5
!6
!7
!8
!9
@0
@1
@2
@3
@4
@5
@6
@7
@8
@9
#0
#1
#2
#3
#4
#5
#6
#7
#8
#9
$0
$1
Thread take-up lever
Foot pressure dial
Reference chart
Top c over
Foot storage compartment
Bobbin thread cutter B
Bobbin winder spindle
Bobbin thread cutter A
Hole for extra spool pin
Spool pin
Spool holder (large)
Thread tension dial
Face cover
Thread cutter
Extension table (accessory storage)
Start/stop button
Reverse button
Auto-lock button
Needle up/down button
Thread cutter button
Feed balancing dial
Speed control slider
Touch panel (Function keys)
LCD screen
Needle clamp screw
Needle
Zigzag foot A
Needle plate
Hook cover release button
Hook cover plate
Foot holder
Setscrew
Needle threader
Buttonhole lever
Carrying handle
Handwheel
Drop feed lever
Machine socket
Foot control jack
Power switch
Presser foot lifter
NOTE:
To carry the sewing machine, hold the carrying handle
with your hand, and support the sewing machine with
the other hand.
NOTE:
Sewing machine design and specifications are subject
to change without prior notice.
