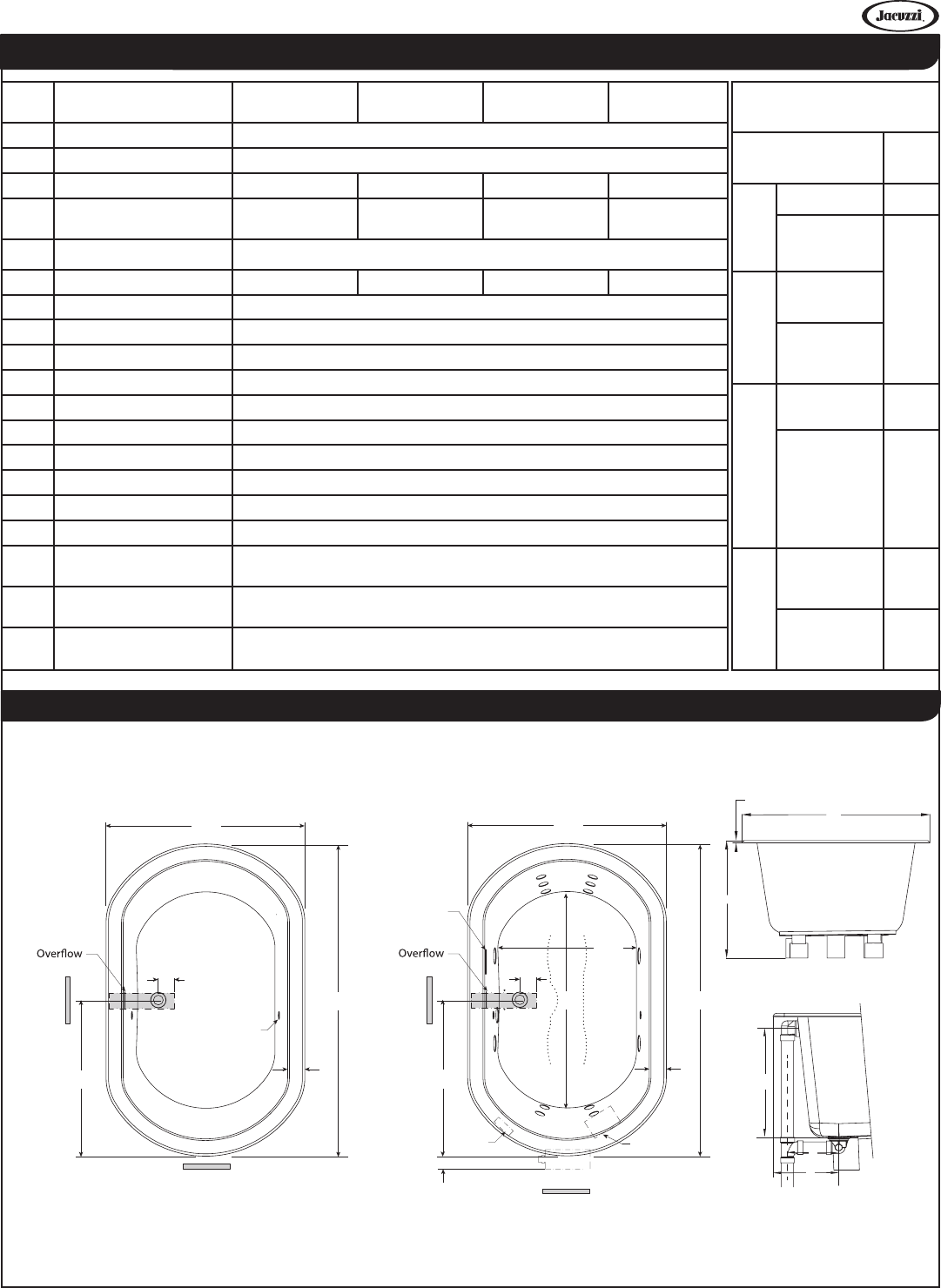

Specification Sheet

MW96000B www.jacuzzi.com Page 3
Technical Specications
Letter Description SOAKING PURE AIR®
BATH
WHIRLPOOL SALON® SPA
- Drain/Motor Location Center Drain/Right Side Motor And/Or Blower
- Cutout Location Template Provided P/N DA07000
- Total Weight 1143 lbs (518 kg) 1182 lbs (536 kg) 1195 lbs (542 kg) 1220 lbs (533 kg)
- Floor Loading
59 lb/ft²
(290 kg/m²)
61 lb/ft²
(299 kg/m²)
62 lb/ft²
(300 kg/m²)
63 lb/ft²
(306 kg/m²)
- Operating Gallons (Max) 97 gallons (367.1 liters)
- Product Weight 85 lbs (39 kg) 124 lbs (56 kg) 137 lbs (62 kg) 162 lbs (73 kg)
- Soaking Depth 17.5” (444.50 mm)
L Outer Length 60” (1524 mm)
W Outer Width 42” (1067 mm)
H Overall Height 26” (660 mm)
A Overow Height 17.9” (455 mm)
B Long Edge to Drain Center 11” (279 mm)
C Short Edge to Drain Center 33” (838 mm)
D Drain Shoe Length 7.25” (184 mm)
E Deck Height 0.50” (13 mm)
F Deck Width 3.875” (98 mm)
G
Service Access
Dimensions
12” x 18” (305 mm x 457 mm)
I
Floor Cutout for
Drain
12” x 6” (305 mm x 152 mm)
J
Interior Dimensions
(bottom of bath) L x W
43” x 28” (1092 mm x 711 mm)
Duetta
®
- Technical Specications for 6642 Models
Key Dimensions
©2017 Jacuzzi Luxury Bath • For additional information call Customer Service 800-288-4002 • www.jacuzzi.com/baths/
Refer to installation instructions included with xture before beginning installation. Please conrm product availability and specications before commencing with any installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Each component requires
a seperate, dedicated GFCI
protected circuit
Model with
components
GFCI
Outlet
(60Hz)
SOAKING
Soaker only None
Soaker w/
Chromatherapy
120V
15A
PURE AIR®
Blower
Chromatherapy
(if available)
WHIRLPOOL
Motor/Pump
120V
20A
Heater (if
available*)
*Heater circuit
not required on
units equipped
with Whisper+
Technology™
120V
15A
Salon® Spa
Motor/Pump/
Heater
240V
20A
Blower
120V
15A
Duetta® Soaking And Pure Air® Bath Models
(Soaking Bath Shown)
Duetta® Whirlpool And Salon® Spa Models
(Salon® Spa Shown)
All Models
Drain/Overflow
H
E
W
End View
A
D
B
Motor
(G) Service
Access
J (L)
J (W)
3”
I
L
F
Blower
Heater
Motor Extends
3” Beyond Lip
C
Control
Panel
(G) Service
Access
W
(G) Service
Access For Blower (Pure Air®
Bath Models)
Chromatherapy
Light Locations
3”
I
L
F
C
(G) Service
Access
W
