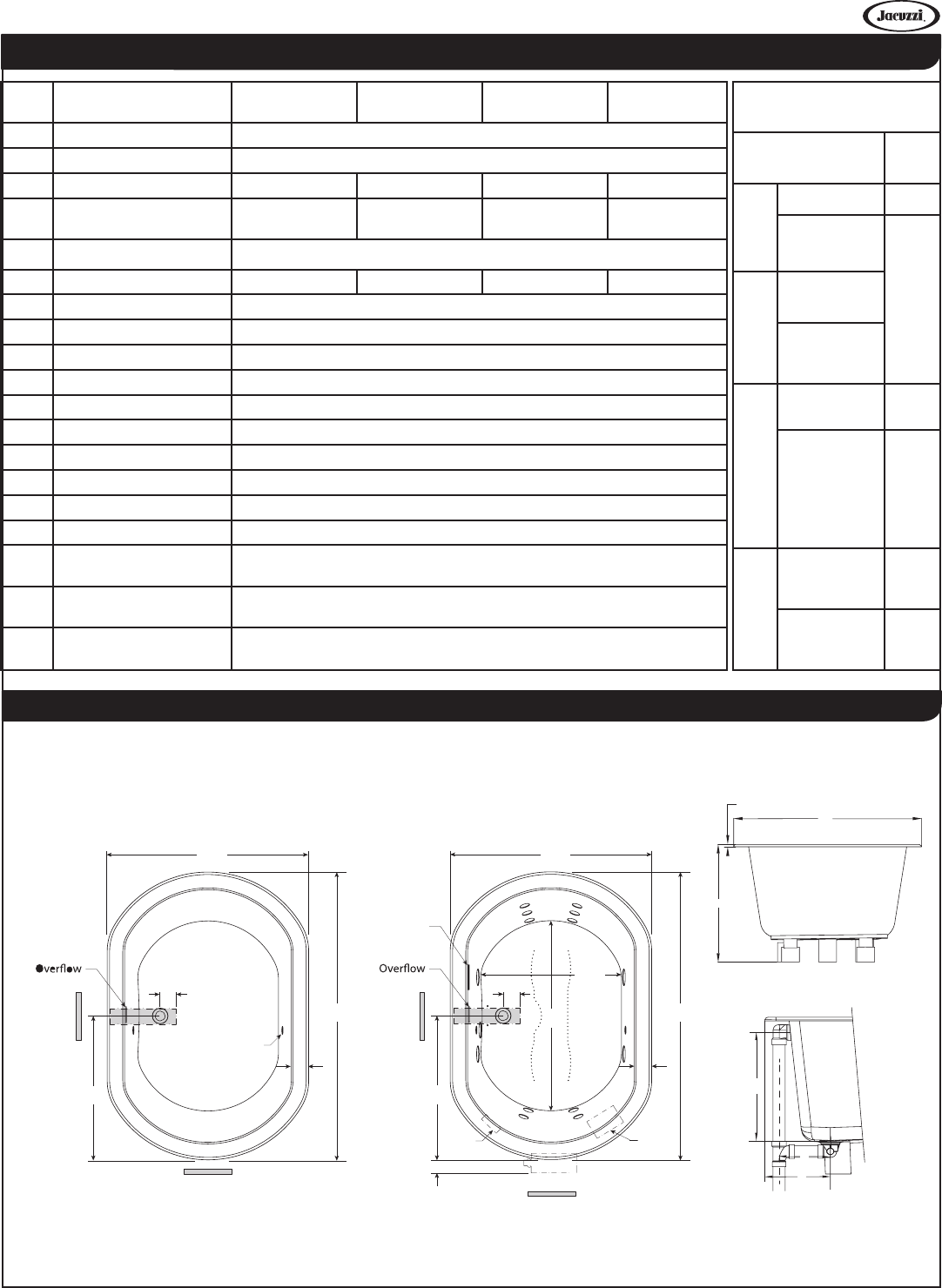

Technical Specications

Letter Description SOAKING PURE AIR®

BATH

WHIRLPOOL SALON® SPA

- Drain/Motor Location Center Drain/Right Side Motor And/Or Blower

- Cutout Location Template Provided P/N DA09000

- Total Weight 1016 lbs (461 kg) 1073 lbs (487 kg) 1077 lbs (488 kg) 1097 lbs (498 kg)

- Floor Loading

58 lb/ft²

(283 kg/m²)

61 lb/ft²

(299 kg/m²)

62 lb/ft²

(300 kg/m²)

63 lb/ft²

(306 kg/m²)

- Operating Gallons (Max) 83.0 gallons (314.2 liters)

- Product Weight 75 lbs (34 kg) 132 lbs (60 kg) 136 lbs (62 kg) 156 lbs (71 kg)

- Soaking Depth 17.5” (444.50 mm)

L Outer Length 60” (1524 mm)

W Outer Width 42” (1067 mm)

H Overall Height 26” (660 mm)

A Overow Height 17.8” (452 mm)

B Long Edge to Drain Center 11” (279 mm)

C Short Edge to Drain Center 30” (762 mm)

D Drain Shoe Length 7.25” (184 mm)

E Deck Height 0.50” (13 mm)

F Deck Width 3.875” (98 mm)

Service Access

Dimensions

12” x 18” (305 mm x 457 mm)

Floor Cutout for

Drain

12” x 6” (305 mm x 152 mm)

Interior Dimensions

(bottom of bath) L x W

39” x 28” (991 mm x 711 mm)

Duetta

- Technical Specications for 6042 Models

Key Dimensions

Refer to installation instructions included with xture before beginning installation. Please conrm product availability and specications before commencing with any installation work.

PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Each component requires

a seperate, dedicated GFCI

protected circuit

Model with

components

GFCI

Outlet

(60Hz)

SOAKING

Soaker only None

Soaker w/

Chromatherapy

120V

15A

PURE AIR®

Blower

Chromatherapy

(if available)

WHIRLPOOL

Motor/Pump

120V

20A

Heater (if

available*)

*Heater circuit

not required on

units equipped

with Whisper+

Technology™

120V

15A

Salon® Spa

Motor/Pump/

Heater

240V

20A

Blower

120V

15A

Duetta® Soaking And Pure Air® Bath Models

(Soaking Bath Shown)

Duetta® Whirlpool And Salon® Spa Models

(Salon® Spa Shown)

All Models

Drain/Overflow

End View

Motor Extends

3” Beyond Lip

J (L)

J (W)

Motor

(G) Service

Access

Control

Panel

(G) Service

Access

BlowerHeater

3”

(G) Service

Access For Blower (Pure Air®

Bath Models)

(G) Service

Access

Chromatherapy

Light Locations

3”
