Operating Manual

Receptacle
Juice Spout
Chute
Lid with built-in
Pulp Guard
Pusher
Receptacle
Lid with built-in
Pulp guard
Blade
Base
Lip
Base
Front of
Machine
(Spout side)
Filter
Receptacle
76

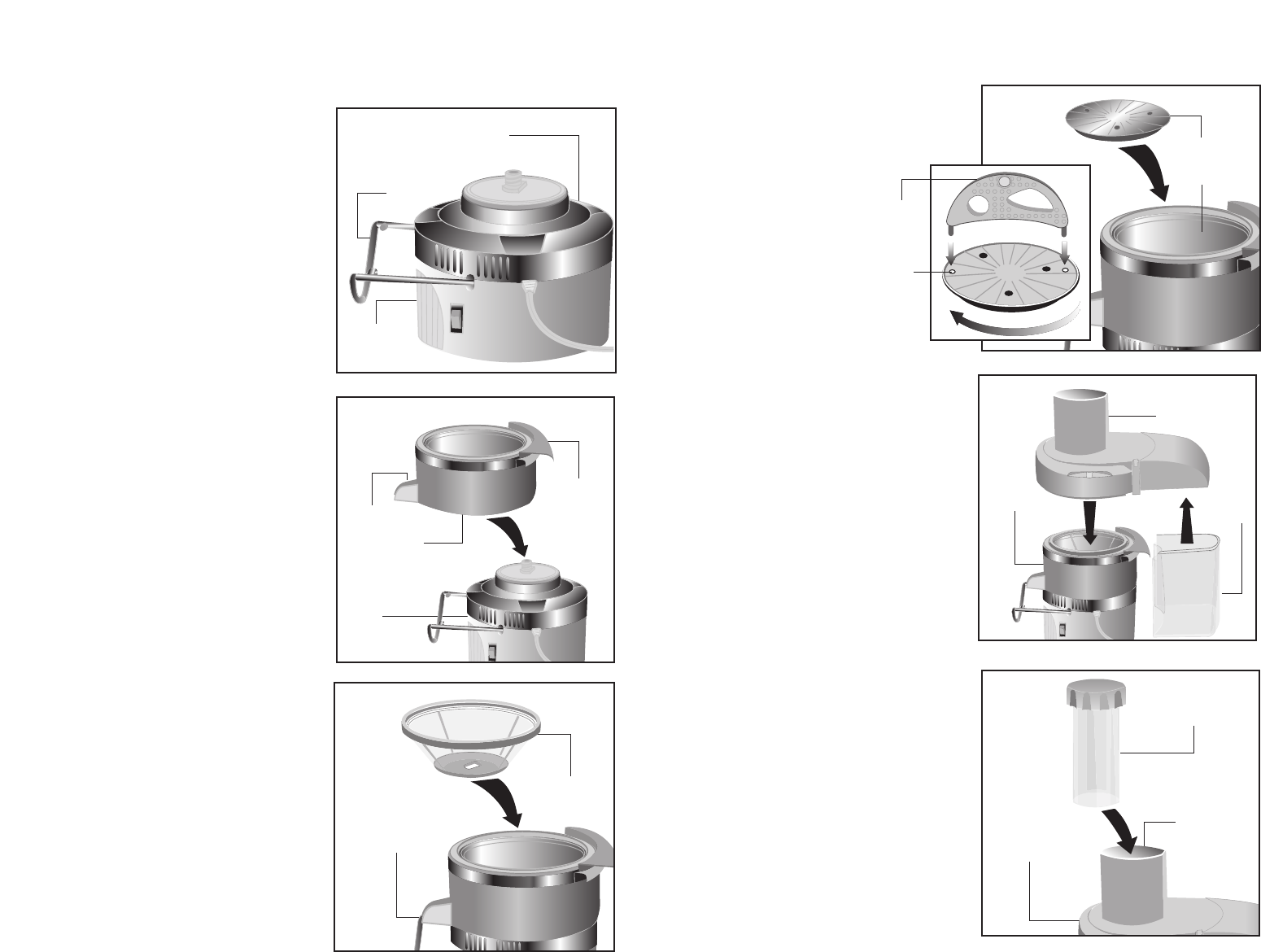

ASSEMBLY
ASSEMBLY
(CONT.)
STEP 2:
Place receptacle on the base,
with juicer spout facing direction
of locking bar. Settle receptacle
into alignment.
STEP 3:
Place filter inside receptacle,
matching the opening on
its bottom to the screw peg
connected to the base.
STEP 4:
Place blade inside filter, centered
over scr
ew peg. Using orange
crescent tool, place its pegs
into the holes in the blade
and turn clockwise
until tightened.
IMPORTANT: Do not
over tighten as the
screw peg will break.
Remove crescent tool
and set aside.
CAUTION: Do not
leave tool inside juicer.
STEP 5:
Place lid with built-in pulp guard attached
on top of r
eceptacle, making certain it is
snugly aligned with the pulp guard facing
in the opposite direction of the juice spout.
Lock lid into place by lifting locking bar
up until it clicks into grooves located
on both sides of the lid. Make sure
locking bar is in the full upright,
locked position.
IMPORTANT: The unit will not start
until this bar is properly locked in place.
STEP 6:
Insert pusher into chute.
Always use pusher to feed fruits
and vegetables into unit. Push gently,
never for
ce. The blade will do the work.
4
5
6
2
3
STEP 1:
Place base on a dry flat surface with
locking bar in down position as shown.
In fr
ont of the machine (spout side).
1
Assemble as shown
Locking
Bar
Filter
Pulp
Collector
Crescent
Tool
Blade
Holes
