OPERATING MANUAL

Summary of content (7 pages)

PAGE 1

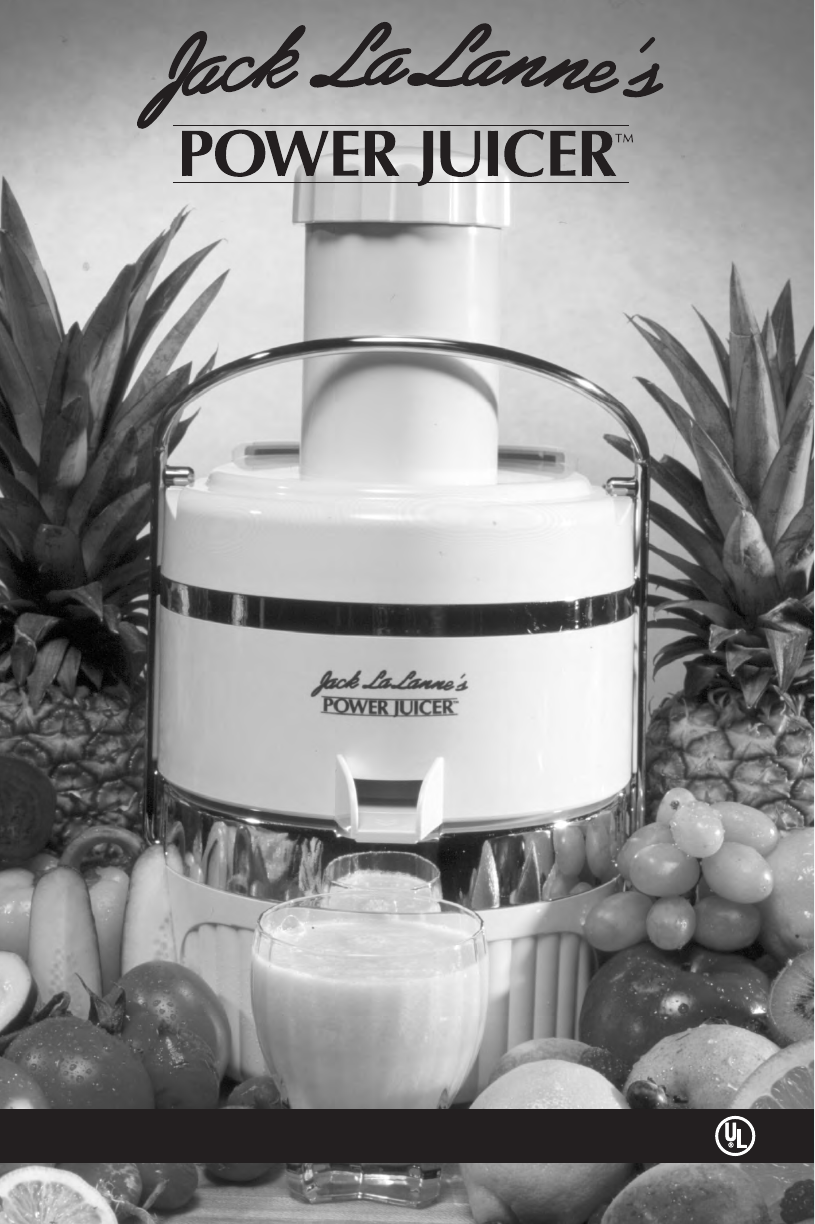

OPERATING MANUAL
PAGE 2
TABLE OF CONTENTS IMPORTANT SAFEGUARDS READ THESE SAFEGUARDS CAREFULLY BEFORE USING THIS PRODUCT! 3 4 5 6 8 9 10 2 Important Safety Information When using electrical appliances, basic safety precautions should always be followed including the following: • NOT FOR USE BY CHILDREN! Keep out of the reach of children to avoid injury. This appliance is not a toy. • Consult your physician before giving fresh juice to children, especially infants.
PAGE 3
PARTS LIST ADDITIONAL SAFEGUARDS The Power Juicer has a thermal cut-off safety feature. If the unit accidentally overheats, it will stop working temporarily until the Power Juicer cools down. Afterwards, the unit will continue to work again normally. In the event the Power Juicer is jammed the motor may shut down. If this occurs the juicer should be shut off and unplugged. The unit should be thoroughly cleaned to remove the obstruction.
PAGE 4
ASSEMBLY ASSEMBLY (CONT.) Assemble as shown STEP 1: Place base on a dry flat surface with locking bar in down position as shown. In front of the machine (spout side). 1 STEP 4: Place blade inside filter, centered over screw peg. Using orange crescent tool, place its pegs into the holes in the blade and turn clockwise Crescent until tightened. Tool IMPORTANT: Do not over tighten as the Blade screw peg will break. Holes Remove crescent tool and set aside. CAUTION: Do not leave tool inside juicer.
PAGE 5
DISASSEMBLY DISASSEMBLY (CONT.) IMPORTANT: Before disassembling the unit make sure you turn the power OFF and unplug the machine from the electrical outlet. STEP 1: Remove pusher from the chute. 1 Pusher STEP 2: Lower the locking bar (silver) into position as shown. STEP 5: Remove filter. 6 5 2 STEP 6: Remove receptacle from base. Filter Receptacle Base Locking Bar Pulp Guard STEP 4: Use the crescent tool (orange) to remove the blade.
PAGE 6
TROUBLESHOOTING Problem The motor does not run after being switched on. Possible Reasons and Solution • Check to see if unit is plugged in. • Locking bar is not locked in place properly. • Check if all parts are assembled properly. • Check if there is any residue left between blade and receptacle.
