User guide

53

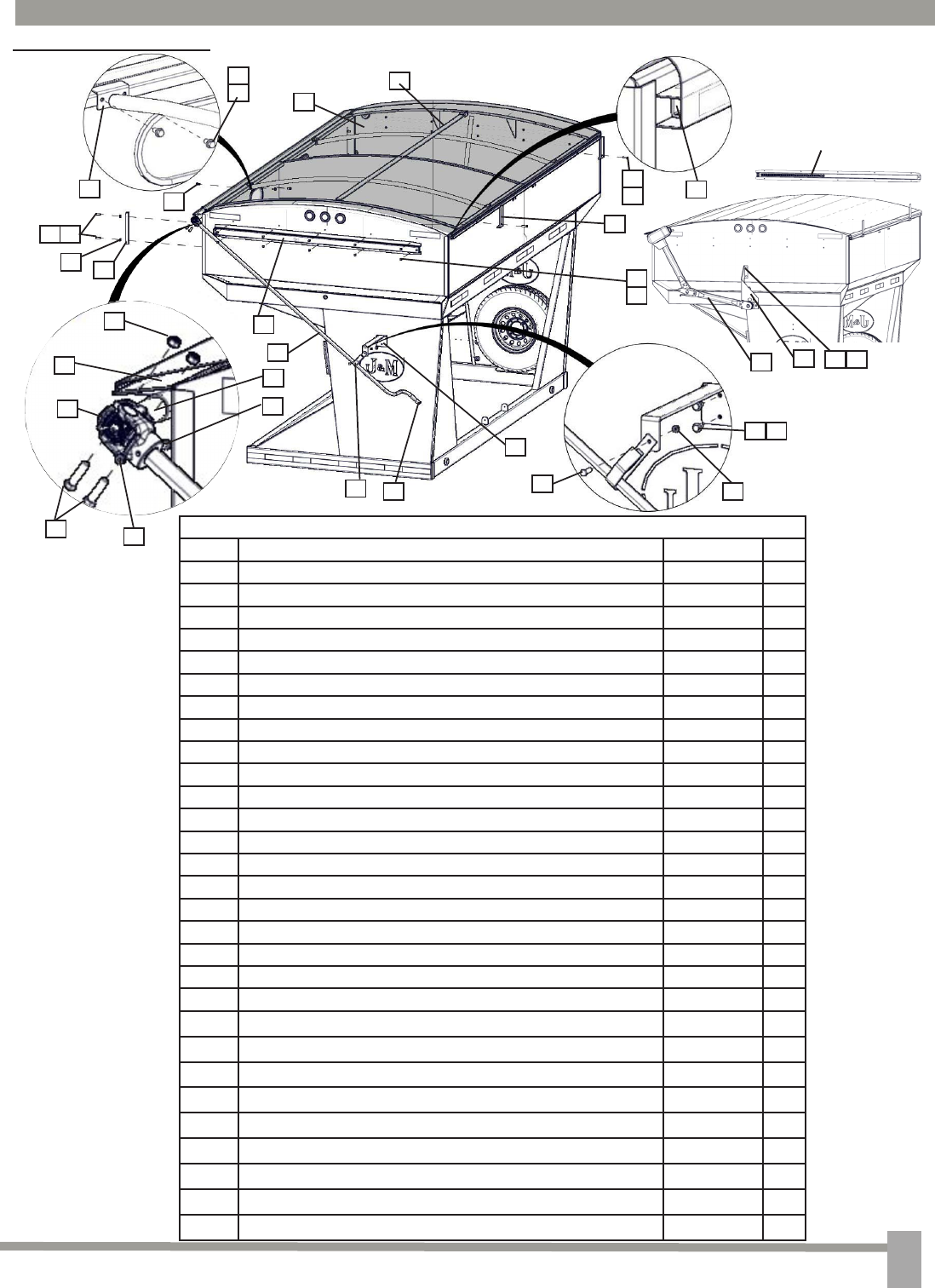

5.0 Parts
Roll Tarp
Item # Description Part # Qty.
1 Spring Return (Detail Section 5.13) JM0002437 2
2 Tarp Handle Holder JM0002976 1
3 Tarp Handle Hanger JM0002903 1
4 Lip Lock JM0002887 1
5 Rigid Cable Assembly JM0010074 1
6 Tarp Handle Universal Joint JM0001517 1
7 Tarp Handle JM0002907 1
8 Tarp Handle Rubber Cap JM0010047 1
9 Tarp Standoffs JM0001889 2
10 Roll Pipe Weldment JM0002912 1
11 Tarp Bow JM0010073 2
12 Tarp Tube JM0002915 1
13 Tarp Stop JM0002448 2
14 Canvas Tarp JM0002957 1
15 3/8-16 X 1.0 Grade 5 Zinc Flat Pan Head Bolt JM0002892 5
16 3/8-16 X 1 1/2 Grade 5 Zinc Hex Bolt JM0001659 7
17 3/8-16 Grade 5 Zinc Centerlock Hex Nut JM0001512 6
18 3/8-16 X 1.0 Grade 8 Zinc Serrated Flange Hex Bolt JM0001509 2
19 3/8-16 Grade 5 Zinc Serrated Flange Hex Nut JM0002152 10
20 1/4-20 X 2 1/2 Grade 5 Zinc Hex Bolt JM0001506 1
21 1/4-20 Grade 5 Zinc Centerlock Hex Nut JM0001505 1
22 1/4-20 X 3/4 Grade 5 Zinc Serrated Flange Hex Bolt JM0001642 20
23 1/4-20 Grade 5 Zinc Serrated Flange Hex Nut JM0001630 20
24 3/8-16 X 3/4 Grade 5 Zinc Serrated Flange Hex Bolt JM0001750 8
25 5/16 USS Flat Washer JM0001742 4
26 Electric Tarp Mounting Brace JM0007122 1
27 Electric Tarp Arm JM0010197 1
28 1/2-13 X 1 1/4 Grade 5 Zinc Hex Bolt JM0001513 3
29 1/2-13 Grade 5 Zinc Centerlock Hex Nut JM0009858 3
5.13 Roll Tarp Parts
1
2
3
7
8
5
9*
11*
12*
13*
14
15
16
17
18 19
22*
23*
*24
*19
16*17*
25*
26
27
Only Front Spring Return
on Electric Tarp Option
28 29
*Typical Other Side
4
6
10
16
17
20
21
16*
17*
