User guide

47
5.0 Parts
Boom Arm
Item # Description Part # Qty.
1 Vertical Axis Boom Pivot Weldment JM0002241 1
2 Boom Arm Weldment JM0002963 1
3 Upper Boom Pivot Weldment JM0001605 1
4 Horizontal Axis Boom Pivot Pin Weldment JM0002456 1
5 Timing Wheel Pin Weldment JM0001560 1
6 Timing Wheel J-Handle Weldment JM0005812 1
7 Upper Linkage Timing Lock Rod JM0002922 1
8 Vertical Axis Boom Pin Weldment JM0002238 1
9 Boom Vertical Hydraulic Cylinder JM0003045 1
10 Timing Pin Shaft Spring JM0001826 1
11 Timing Pin Spool Bushing JM0010004 1
12 1/4 Dia. Snap Ring Lynch Pin (See Figure 1.3) JM0001870 1
13 Timing Pin Shaft Coupling, 3/4" Threads JM0002923 1
14 Lower Linkage Timing Lock Rod JM0002921 1
15 1 1/4-7 Grade 5 Zinc Hex Nut JM0001700 2
16 1.0-8 Z Grade 5 Hex Jam Nut JM0001705 3
Continued Next Page
1
2
3
8
5
11
10
7
6
4
9
13
14
29
17
17
24
26
22
19
17
18
25
22
18
23
21
16
16
27
28
15
20

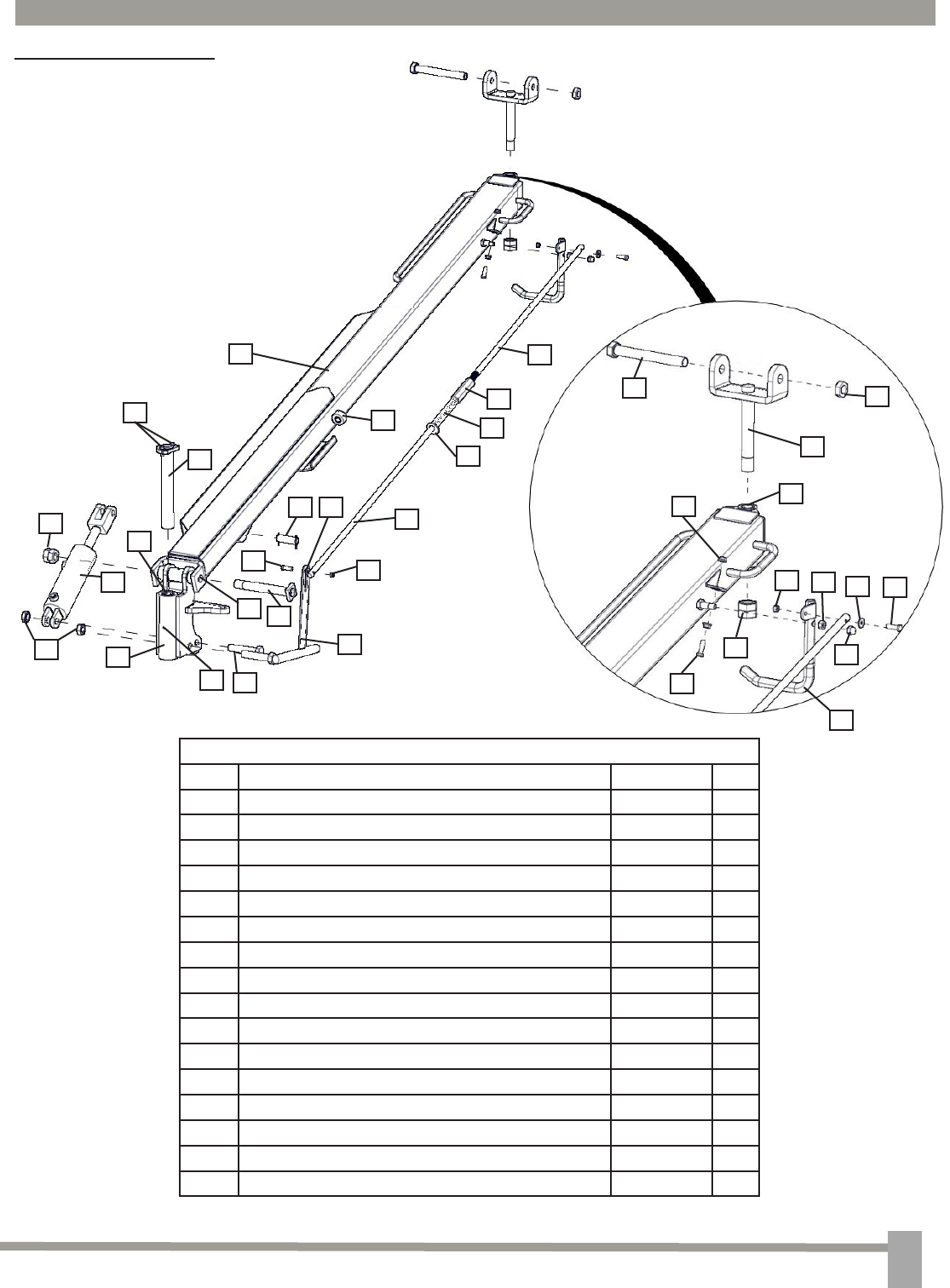

5.7 Boom Arm Parts
5.0 Parts
31
30
30
