5.0 Parts
5.0 Parts
Scale Display Box-Qty. 1
Item # Description Part # Qty.
1 Weigh Scale Box Weldment JM0009961 1
2 Weigh Scale Box door JM0002944 1
3 Chrome T-Handle Non-Locking JM0001911 1
4 3/8 USS Flat Washer JM0003061 6
5 3/8-16 X 1 1/2 Grade 5 Zinc Hex Bolt JM0001659 2
6 3/8-16 Grade 5 Zinc Centerlock Hex Nut JM0001512 2
7 Scale Display/Interface JM0007293 1
Weigh Bar Mount-Qty. 4
Item # Description Part # Qty.
8 Weigh Bar Weldment JM0009966 1
9 1/2 USS Flat Washer JM0003082 8
10 1/2-13 X 1 3/4 Grade 5 Zinc Hex Bolt JM0002101 4
11 3/8-16 X 3 1/2 Grade 5 Zinc Hex Bolt JM0001986 2
12 3/8-16 Grade 5 Zinc Centerlock Hex Nut JM0001512 2
13 1/2-13 Grade 5 Zinc Centerlock Hex Nut JM0001511 4
14 2.125 Dia.Weigh Bar with Cord JM0002797 1
Dummy Scale Mount (Non-Scale Option)-Qty. 4
Item # Description Part # Qty.
15 Dummy Scale Weldment JM0002514 1
16 1/2 USS Flat Washer JM0003082 8
17 1/2-13 X 1 3/4 Grade 5 Zinc Hex Bolt JM0002101 4
18 1/2-13 Grade 5 Zinc Centerlock Hex Nut JM0001511 4

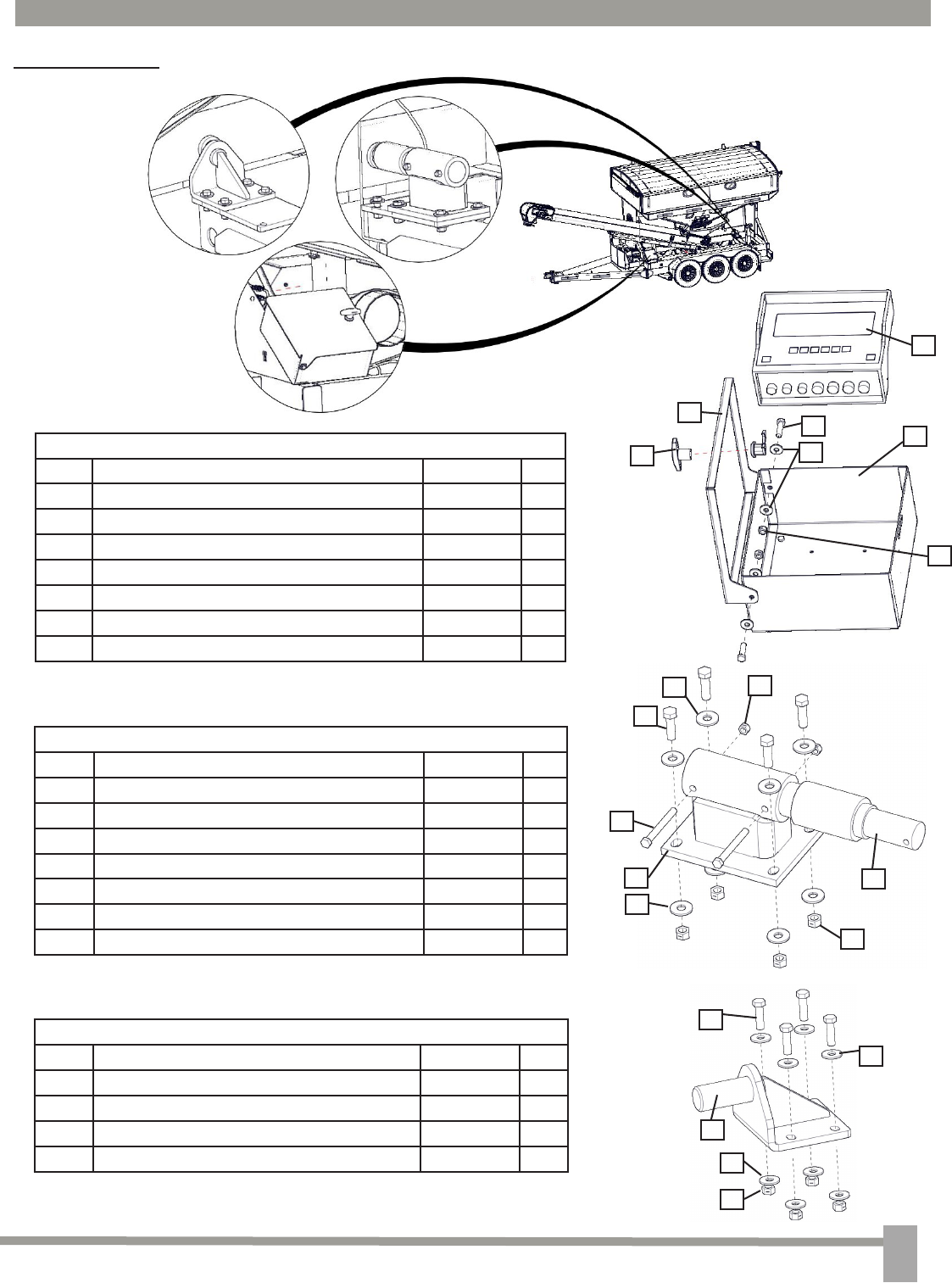

5.2 Scale Parts
1
7
5
4
3
2
6
8
9
10
11
12
13
14
16
15
16
17
18
9
*Typical Other Side
