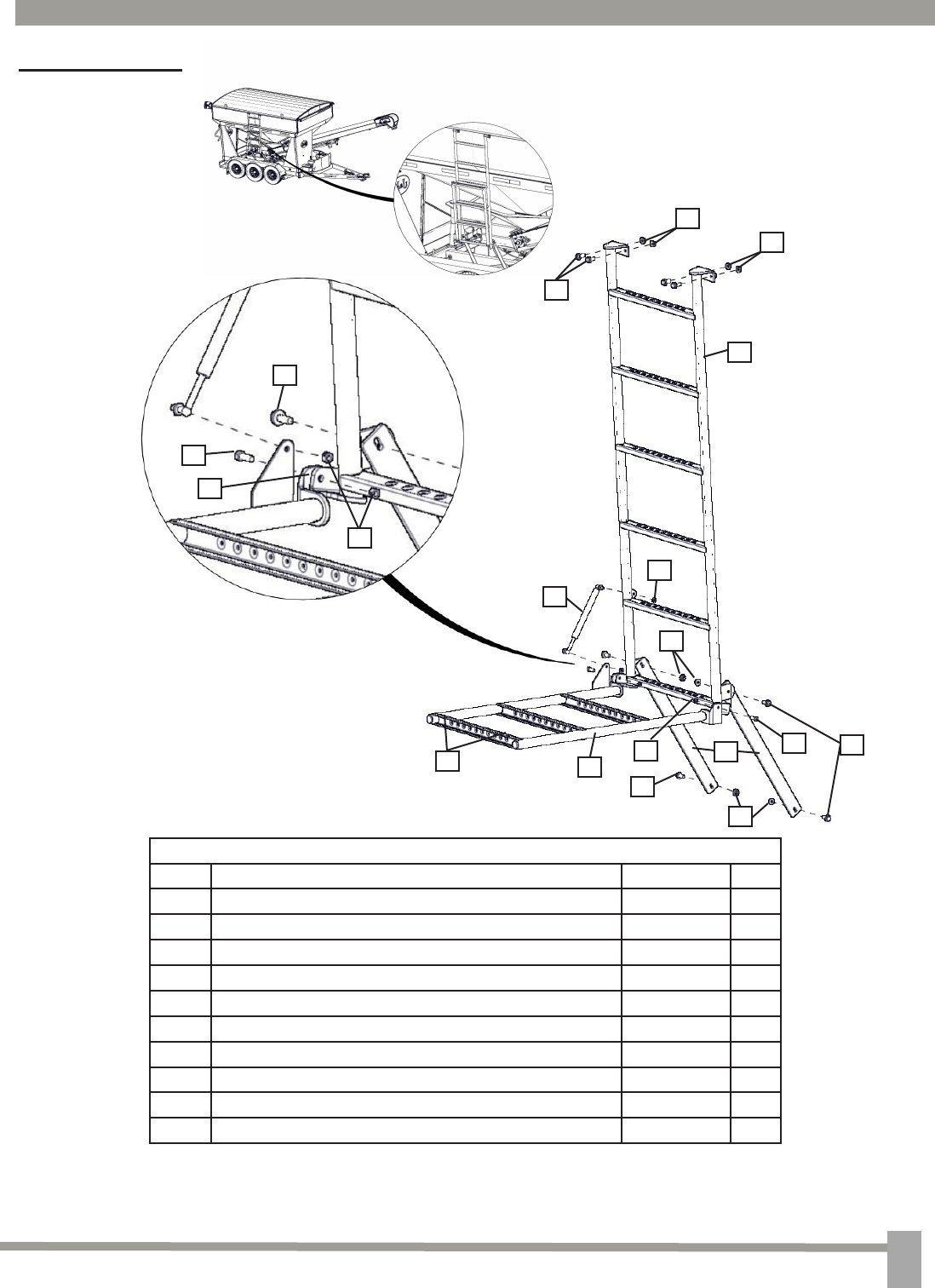

5.0 Parts
5.1 Ladder Parts
Ladder
Item # Description Part # Qty.
1 Top Ladder (Long) JM0002950 1
2 Bottom Ladder (Short) JM0002359 1
3 Bottom Ladder Support JM0002369 2
4 Ladder Gas Spring (120lbs) JM0001961 1
5 3/8-16 X 1.0 Grade 5 Zinc Serrated Flange Hex Bolt JM0003150 8
6 3/8-16 Grade 5 Zinc Serrated Flange Hex Nut JM0002152 8
7 5/16-18 Grade 5 Zinc Centerlock Hex Nut JM0002143 4
8 5/16-18 X 1.0 Grade 5 Zinc Hex Bolt JM0001743 2
9 5/16 USS Flat Washer JM0001742 2
10 Round Rubber Bumpers JM0002920 2
1
5
4
3
2
5*
6
6
6
5
5
6
7
7
7
8
8
9*
10
*Typical Other Side
