Optional Direct Connect Remote Antenna Installation
TDC
-0909-006 100W/100W+ and 100WP/100WP+ Datalogging Water ERT Module Installation Guide 37
Proprietary and Confidential
To connect the remote antenna to the ERT module

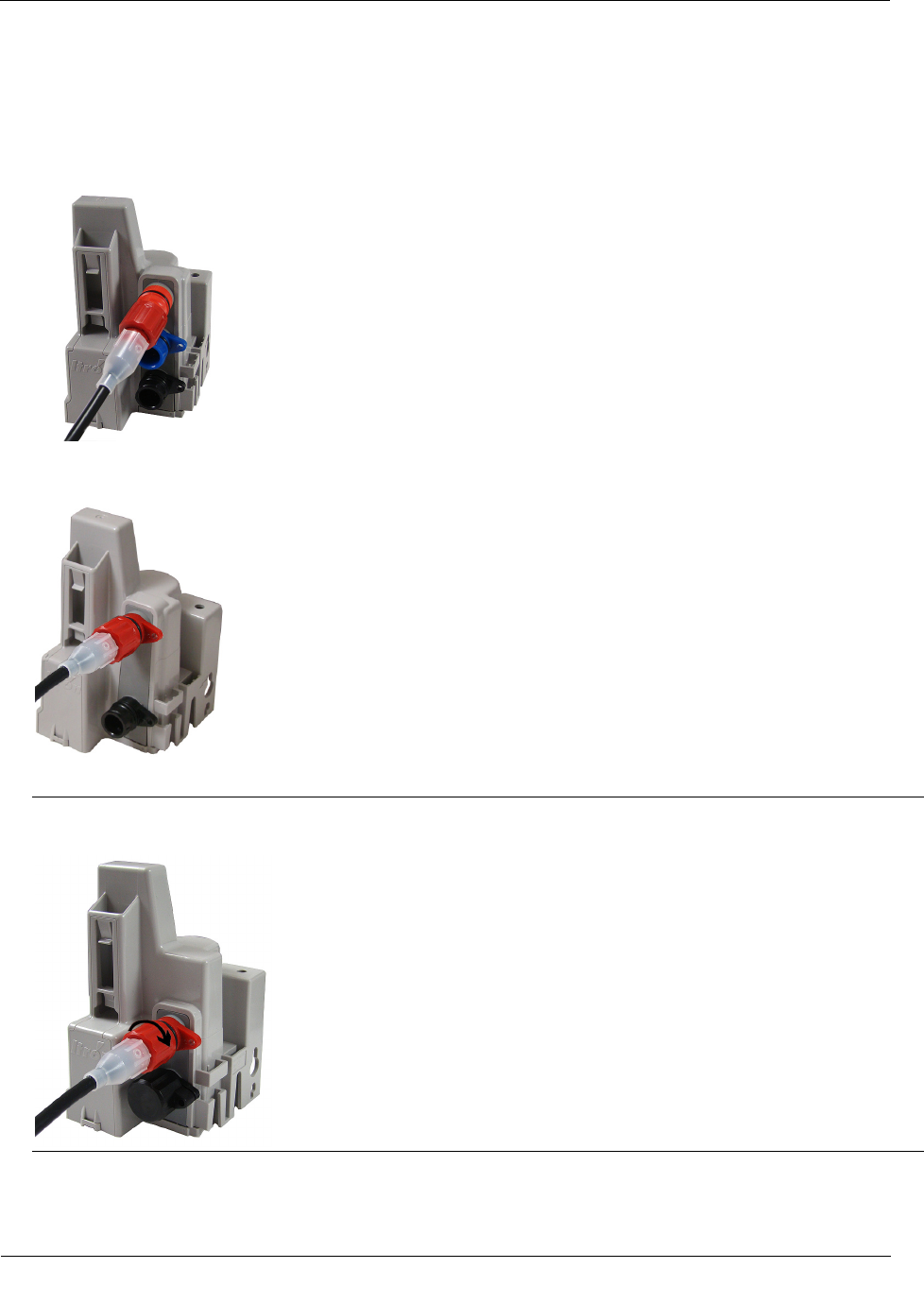

1. Align the connector pins with the top, red connector on the ERT module. The illustration shows a 3-port
ERT module connection.
2. Push in the antenna connector to complete the connection. The illustration shows a two-port ERT module
connection.
3. Turn the connector lock ring to the right to secure the connection.
Caution Turn the connector lock-ring only. Do not twist the completed connection. Twisting the
connection could damage the ERT module or antenna connector pins.
4. Follow the Rod Mount Installation on page 15 or Wall Mount Installation on page 18 instructions to
mount the ERT module.
