Assembly (cont’d)

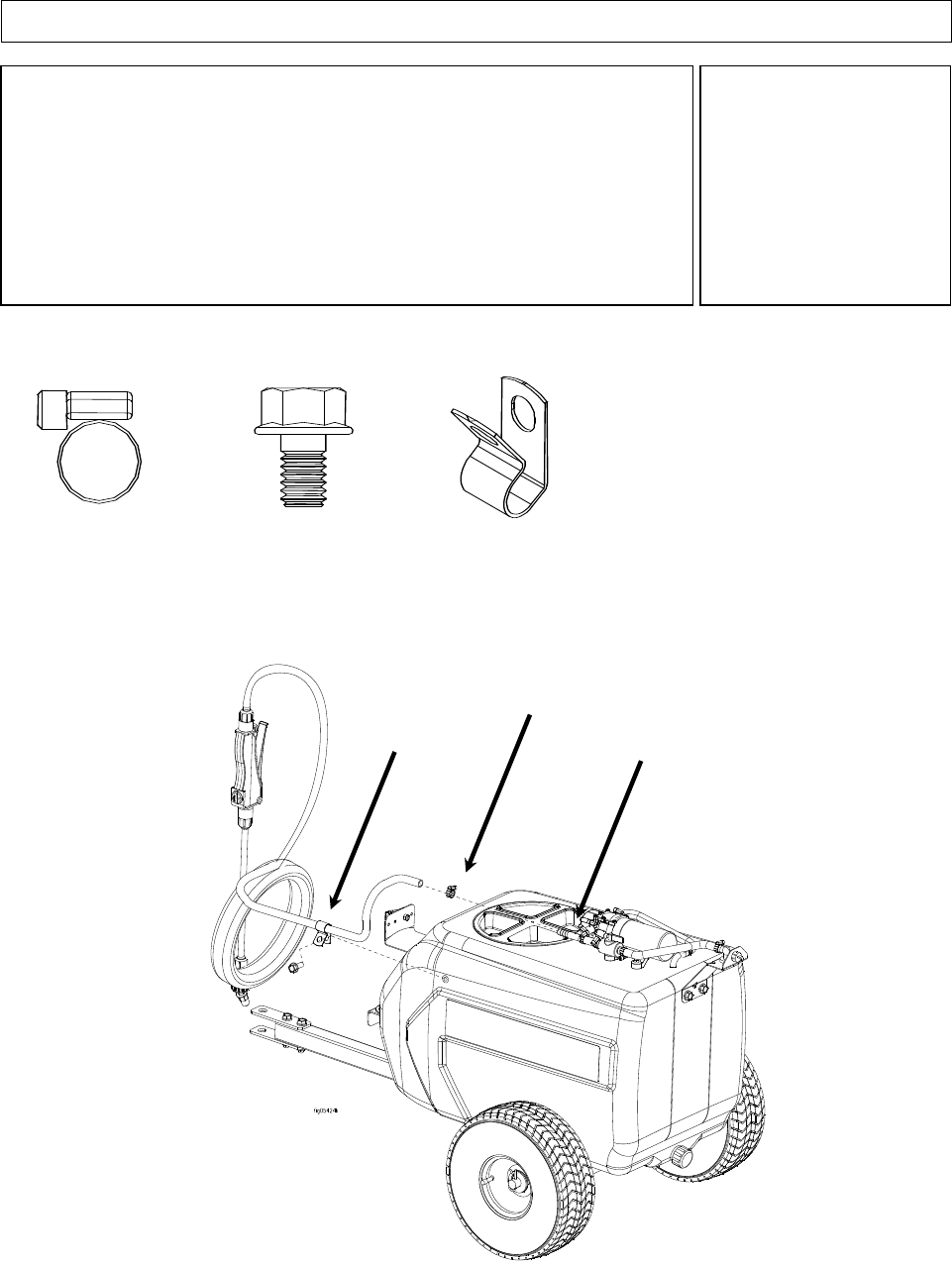

Step 12 – Gun Hose Assembly
• Route gun hose through hose clip and hose clamp.
• Slide gun hose over hose barb tee from boom hose
assembly.
• Tighten hose clamp.
• Secure hose clip to tank with bolt and torque to 5 Ft.-Lbs.
Tools Needed
• 1/2” wrench
• Torque wrench
• Flat head
screwdriver
Component Needed from Owner’s Manual Bag:
Hose Clamp
Qty 1
30746
5/16” x 1/2” Bolt
Qty 1
82014
Hose Clip
Qty 1
777110
Hose Clip
Hose clamp
Hose barb from
boom hose assembly
