Product Manual

Page 9 of 12

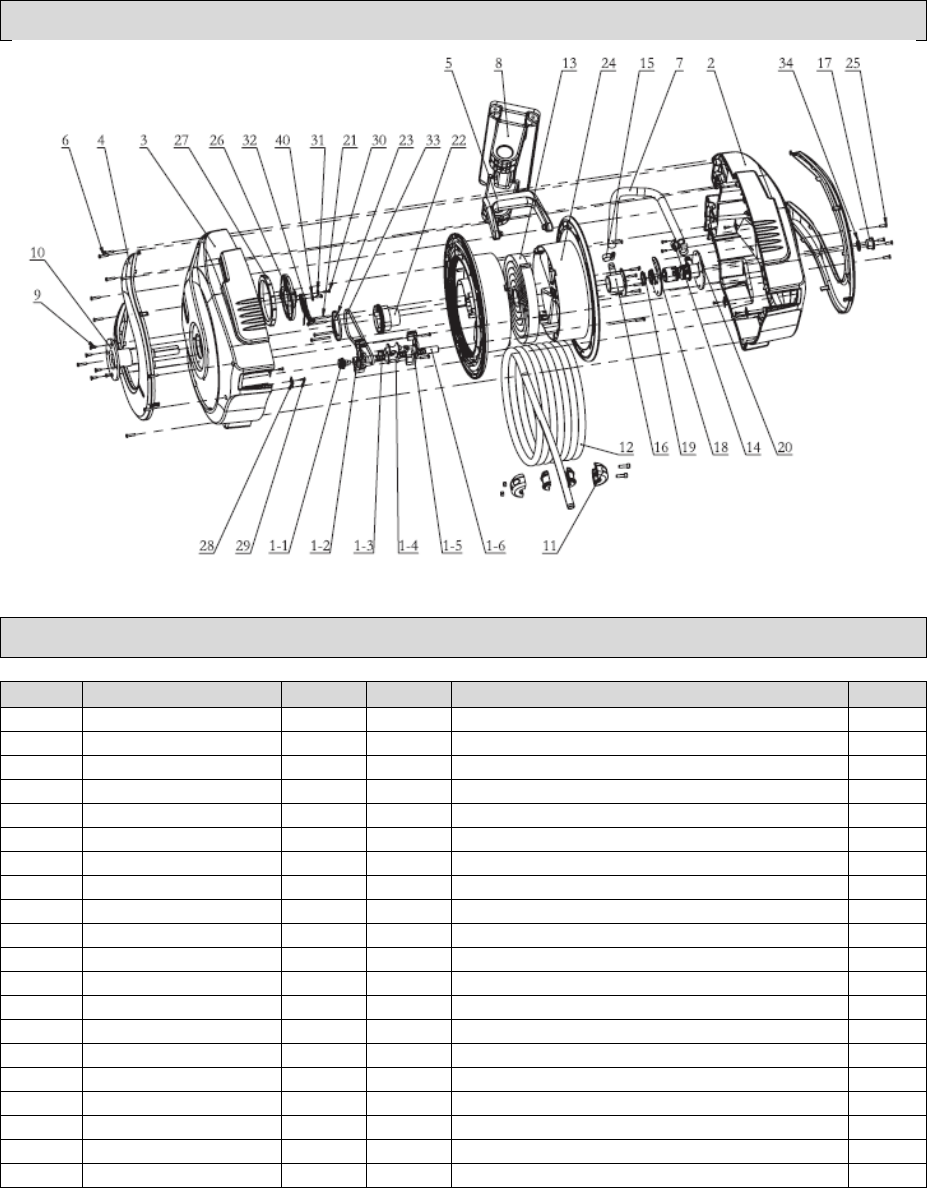

Parts Diagram
Parts List
Part#
Description
Qty.
Part#
Description
Qty.
1-1
Small Gear
1
16
Swivel Body
1
1-2
Roller Frame B
1
17
Plug
1
1-3
Moving Unit
1
18
Retainer
1
1-4
Roller
2
19
O-Ring
2
1-5
Roller Frame B
1
20
Swivel Spool
1
1-6
Taxis Axle
1
21
Screw
4
2
Right Casing
1
22
Synchronous Belt Wheel
1
3
Left Casing
1
23
Synchronous Belt Wheel Guard Plant
1
4
End Cover
2
24
Drum
2
5
Handle
1
25
Screw
4
6
Screw
21
26
Gear
1
7
Hose Assembly
1
27
Ring
1
8
Base
1
28
Guard Plant
6
9
Screw
4
29
Screw
8
10
Main shaft
1
30
Screw
3
11
Bumper Block
1
31
Washer
2
12
Hose Assembly
1
32
Ratchet Paw
1
13
Spring
1
33
Synchronous Belt
1
14
Clamp
1
34
O-Ring
1
15
Hose Clamp
2
