2.7 The Preview Tab
The Preview tab allows you to preview (a low-resolution scan) your image before final scan. This
preview image lets you allocate your scan area. You can choose your scan area by the “Scan
Area” drop down list box or placing your cursor on the Display window and dragging it diagonally
on the Display window. Then, a red rectangle box will appear to indicate the selected area.
Note: If you choose “Automatic Cropping” on the “Paper Tab”, then to select a scan area on the
Preview tab is not allowed.

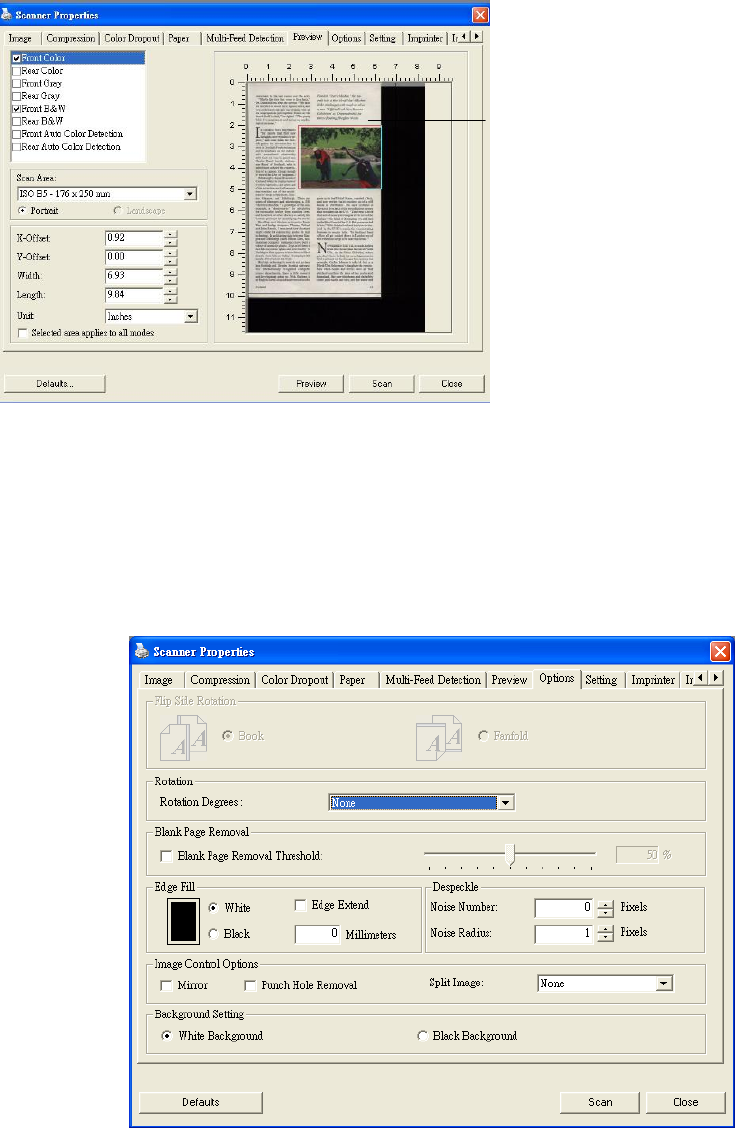

The Preview Tab
2.8 The Options Tab
Important: the settings of this tab are actually spread over the Rotation, Separation and
Enhancement tabs.
These options allow you to set following additional image processing settings.
The Option tab dialog box
The Display
Window
