Operation Manual
Table Of Contents
- 1. Introduction
- 2. Using the Scanner Properties Dialog Box (Setup)
- 2.1 A Glance at the Scanner Properties Dialog Box
- 2.2 Buttons on the Scanner Properties Dialog Box
- 2.3 The Image Tab
- 2.4 The Compression Tab (Windows PC only)
- 2.5 The Color Dropout Tab
- 2.6 The Paper Tab
- 2.7 The Preview Tab
- 2.8 The Options Tab
- 2.9 The Setting Tab
- 2.10 The Imprinter Tab
- 2.11 The Information Tab
- 3. Legal Information

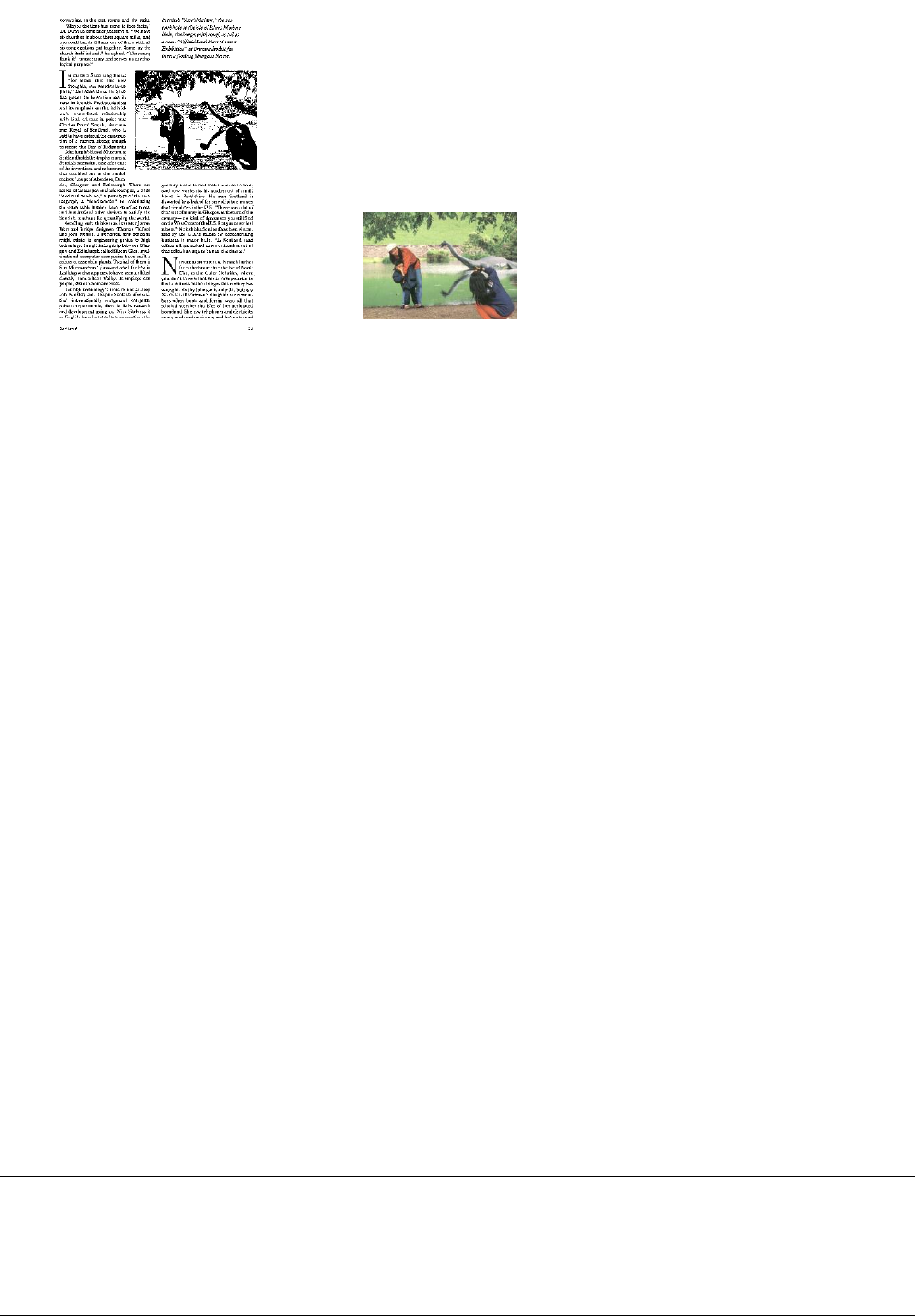

The entire document in B&W The relative area in color
2.6.2 Other Paper Selection
Scan Area
Choose your desired paper size with the drop-down list box. Or you may select a custom paper
size by clicking the Scan Area box and then click Add to include in the choice.
Choice: None, US Letter- 8.5”x 11”, US Legal – 8.5” x 14”, ISO A4 – 21 x 29.7 cm, ISO A5 –
14.8 x 21 cm, ISO A6 – 10.5 x 14.8cm, ISO A7 – 7.4 x 10/5 cm, ISO B5 – 17.6 x 25 cm, ISO B6
– 12.5 x 17.6 cm, ISO B7 – 8.8 x 12.5 cm, JIS B5 – 18.2 x 25.7 cm, JIS B6 – 12.8 x 18.2 cm,
JIS B7 – 9.1 x 12.8 cm, Scanner Maximum, Long Page.
Long Page:
When you need to scan documents whose length exceeds scanner maximum, please choose Long
Page. Note if Long Page is selected, the Multi-Feed Detection will not be available. Options:
Unknown Length, Enter Length (Note: This option varies due to type of scanner.)
Choose “Unknown Length” if you have a batch of long page document with unknown length.
Choose “Enter Length” to enter the length and width of your documents or your desired scan size
on documents. This is useful when you have a batch of documents with the same scan size or a
batch of same-sized documents.
OverScan
Overscan allows you to add a specific margin at top and bottom or right and left (Options vary
based on the type of scanner) of the edge of the image. This is used to reduce possible corner
clipping on the skewed images and often applied to a batch of skewed document to be scanned
in the auto document feeder. Select a value between 0 and +5 mm. Note the overscan result
will not be shown in the Display window and that the availability of the function varies based on
type of scanner.
Transport Timeout
Set the amount of time the scanner will wait and then start auto scan after the first scan job is
completed. If you have many separate documents need to be scanned at the same scan settings,
this feature is especially useful. The default is 0. The value ranges from 0 to 30 seconds.
Note:
1 Within the specified timeout period, if you load your document to the feeder, the scanner
starts scanning automatically.
2 If your scanner has a flatbed option and you place your paper on the flatbed, after the
timeout period, you need to click the Scan button on the TWAIN user interface to start
scanning.
