CHAPTER 1: INTRODUCTION
2003 IPMobileNet, Inc. 7 IPSeries MR User Manual / Rev. A / 04-September-03
External Features
The base station technology is enclosed in a sturdy aluminum case.
1 The product warranty becomes void if an uncertified or unauthorized individual removes the base
station cover.

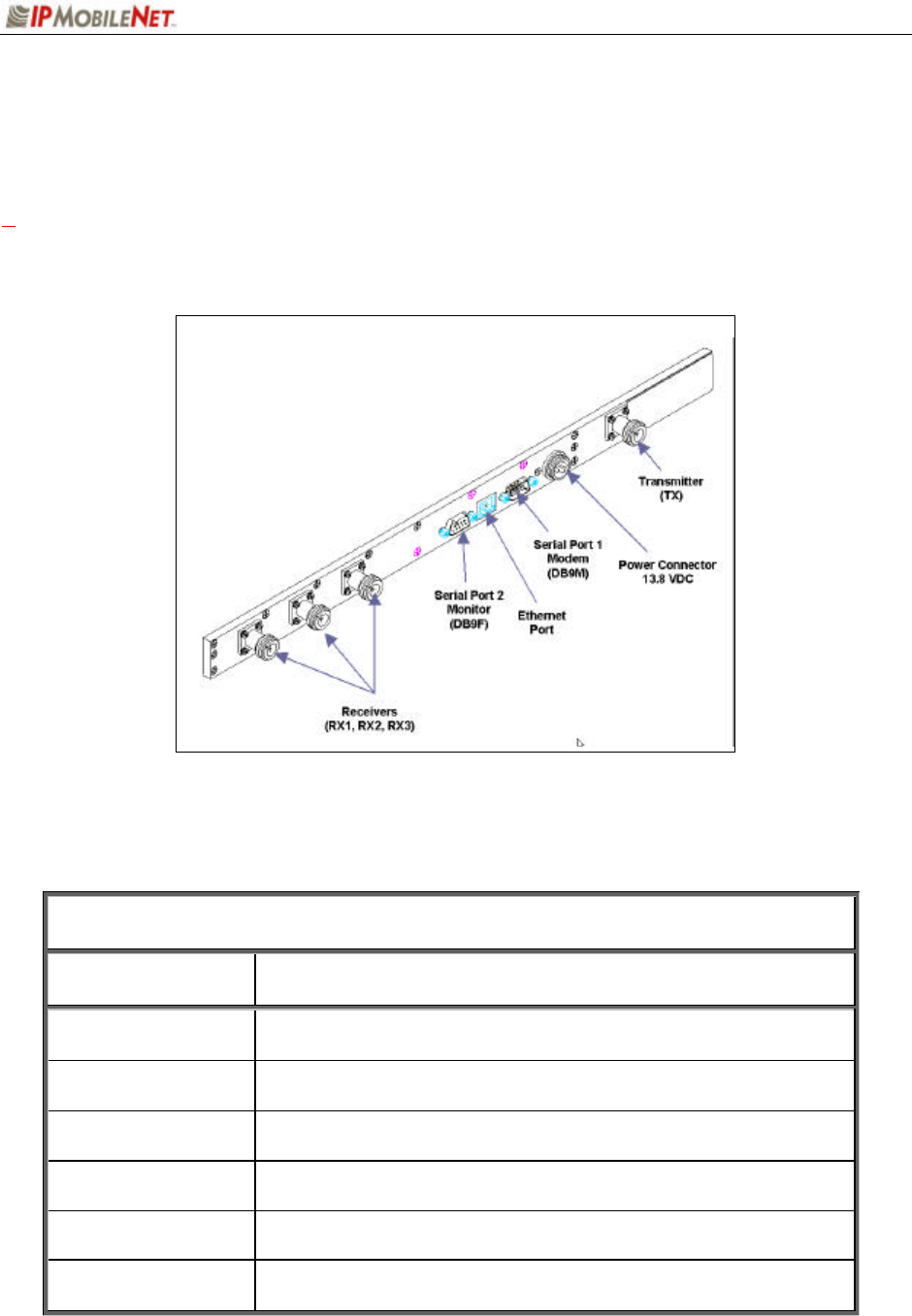

Figure 2: External Connectors of an IPSeries Base Station (Rear View)
The base station’s rear external connectors consist of the following components:
TABLE 2: EXTERNAL FEATURES (Rear)
FEATURE DESCRIPTION
TX Transmitter antenna connection
RX1/RX2/RX3 Receivers 1, 2, and 3 antenna connections
Power Connector 13.8 VDC base station power connector
Serial Port 1 (DB9M) RS232 Serial Line Internet Protocol (SLIP) interface port
Serial Port 2 (DB9F)
ANSI/TTY Terminal Connection (used for programming)
(9600 bps, no parity, 8-databits, 1-stop bit)
Ethernet Port RJ45 Ethernet 10 Base T interface port
