CHAPTER 4: PRODUCT INSTALLATION
2003 IPMobileNet, Inc. 26 IPSeries MR User Manual / Rev. A / 04-September-03
Power Connection

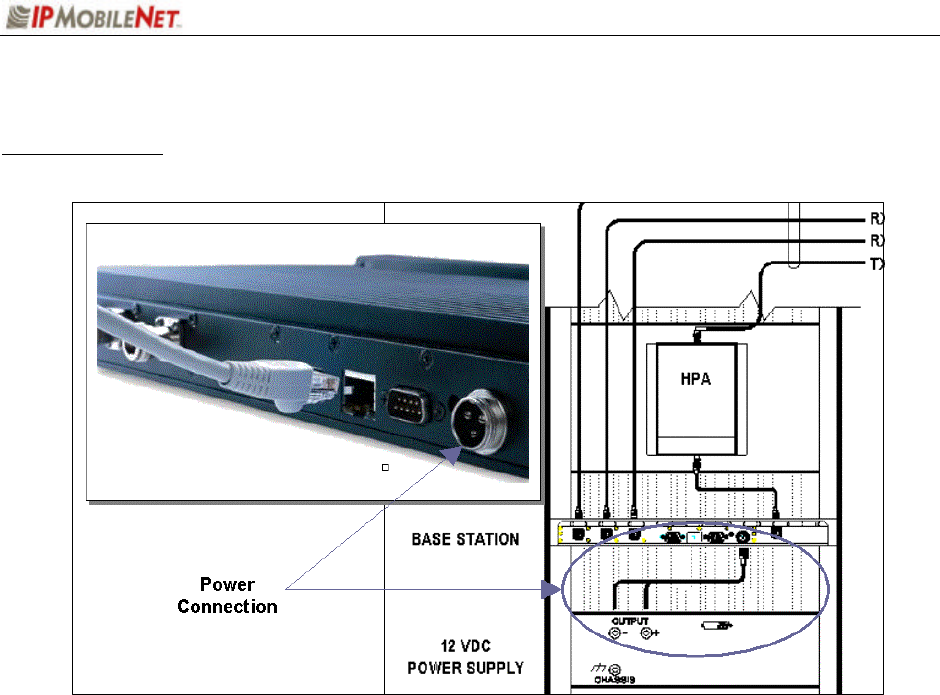

Figure 15: Base Station Power Connection
To connect the base station power connector, perform the following steps:
Step 1 Connect the power cable to the base station power supply connection (as shown in the figure
above).
Step 2 Connect the wires to the appropriate output (+ and -) output posts on the power supply (as
shown in the figure above).
