CHAPTER 4: PRODUCT INSTALLATION
2003 IPMobileNet, Inc. 23 IPSeries MR User Manual / Rev. A / 04-September-03
Single Base Station Configuration

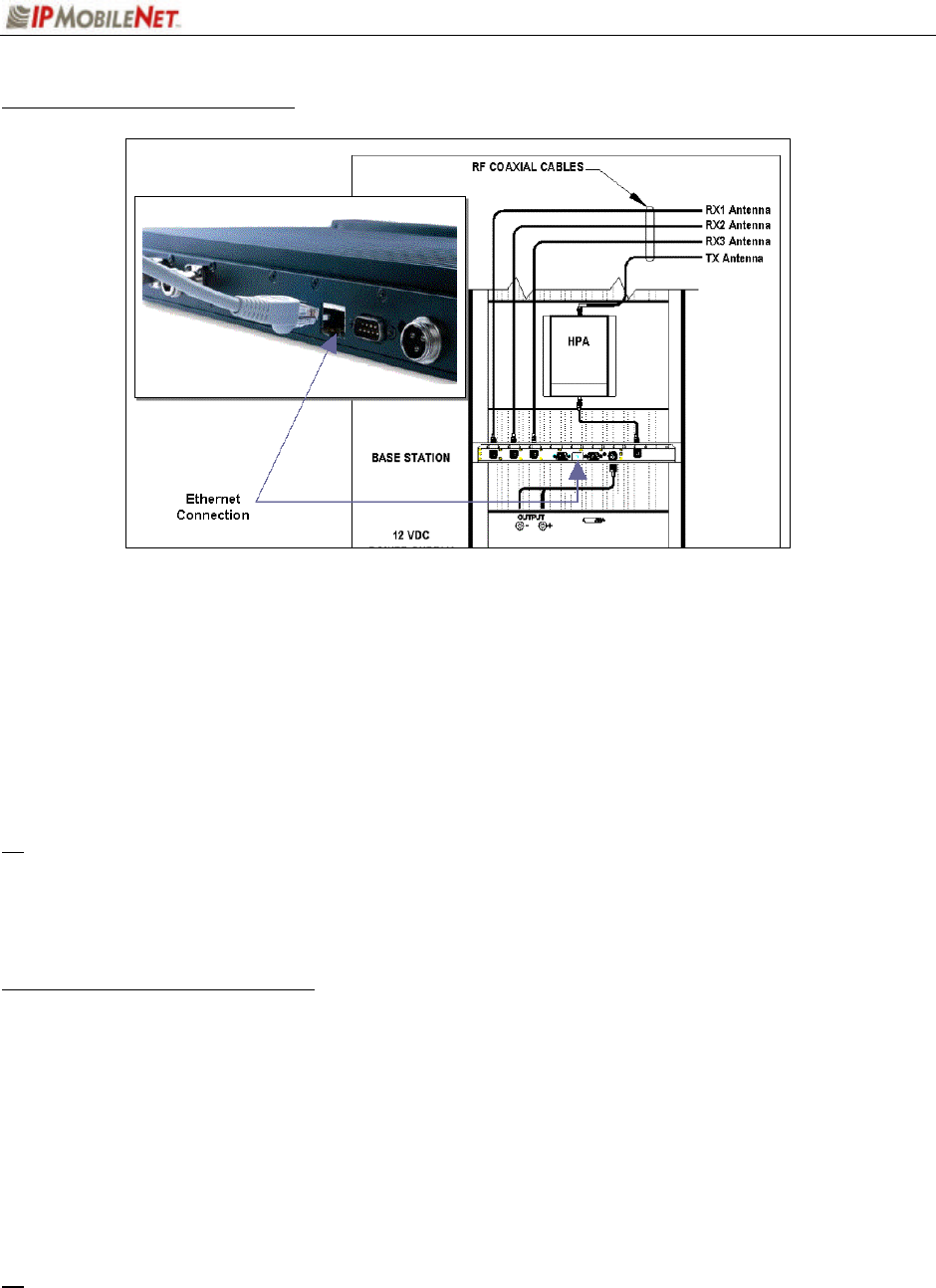

Figure 13: Base Station Ethernet Connection
To connect a single base station, perform the following steps:
Step 1 Plug in the Ethernet crossover cable into the Ethernet port on the base station (as shown in
the figure above).
Step 2 Route and plug in the Ethernet crossover cable to an IPMobileNet’s Internet Protocol Network
Controller (IPNC) via the hardware as defined by the organization’s configuration (see
Chapter 2 Basic Configuration Samples).
! If connecting to a serial backhaul, an IPMobileNet IPTurbo Converter is required. If not
already ordered, please refer to Chapter 6 for ordering information. For connection
instructions, refer to 516.80496.QR IPTurbo Converter Quick Reference Guide (IPMN p/n:
516.80496.QR) available on the Product Documentation CD provided with this product.
Multiple Base Station Configurations
To connect multiple base stations, perform the following steps:
Step 1 Plug in the Ethernet cables to the back of each base station (as shown in the figure above)
and route according to selected setup (see Chapter 2 Basic Configuration Sample on page
12 and also refer to the 516.80496.QR IPTurbo Converter Quick Reference Guide for setup
instructions and scenarios).
Step 2 Route and plug in the Ethernet cables to an IPMobileNet’s Internet Protocol Network
Controller (IPNC) via the hardware as defined by the organization’s configuration (see
Chapter 2 Basic Configuration Samples).
! If connecting to a serial backhaul, an IPMobileNet IPTurbo Converter is required. Refer to
Chapter 6 for ordering information. For connection instructions, refer to 516.80496.QR
IPTurbo Converter Quick Reference Guide.
