User's Manual

CHAPTER 4: PRODUCT INSTALLATION
2003 IPMobileNet, Inc. 22 IPSeries MR User Manual / Rev. A / 04-September-03
Step 7 Connect the RF coaxial cable to the Transmitter (TX) connection on the back of the base
station.
Step 8 If connecting to a power amplifier (as shown in the figure below), connect the cable from the
base station to the power amplifier via the Transmitter (TX) connection.
If not connecting to a power amplifier, skip to Step 11.
Step 10 If a power amplifier is used, connect an RF coaxial cable to the output port of the power
amplifier.
Step 11 Route the cable neatly toward the top of the rack. Allow a little slack in the cable to avoid
accidental disconnection.
Step 12 To perform the RX1, RX2, RX3, and TX antenna connections, refer to the Typical Antenna
Configuration section in this chapter.

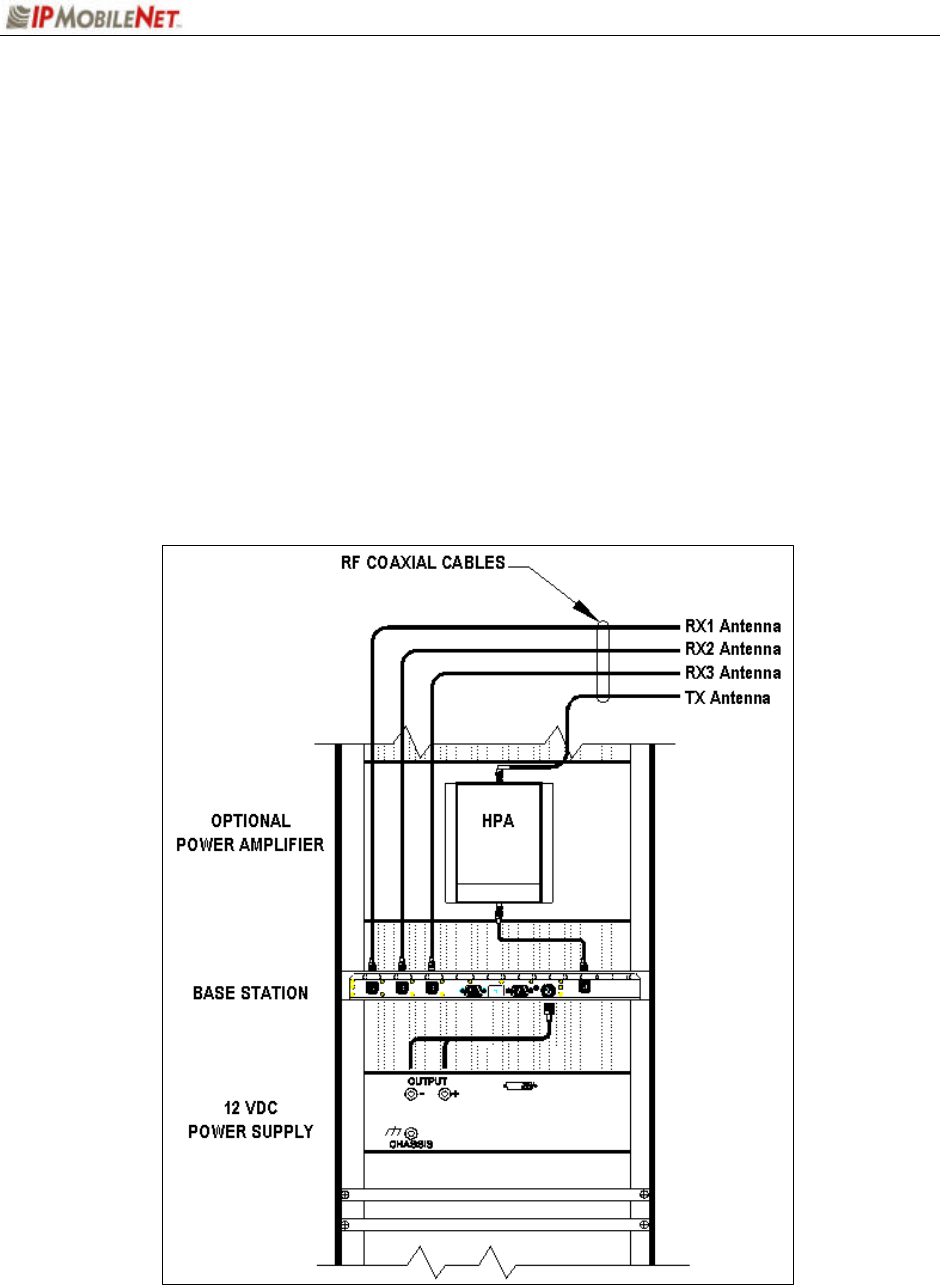

Figure 12: Base Station Mounting and Connection in the Rack Unit (Rear View)
