User's Manual

CHAPTER 4: PRODUCT INSTALLATION
2003 IPMobileNet, Inc. 21 IPSeries MR User Manual / Rev. A / 04-September-03
Installation Instructions
! If setting up a new rack unit, make sure to complete the rack unit setup according to the
Manufacturers instructions.

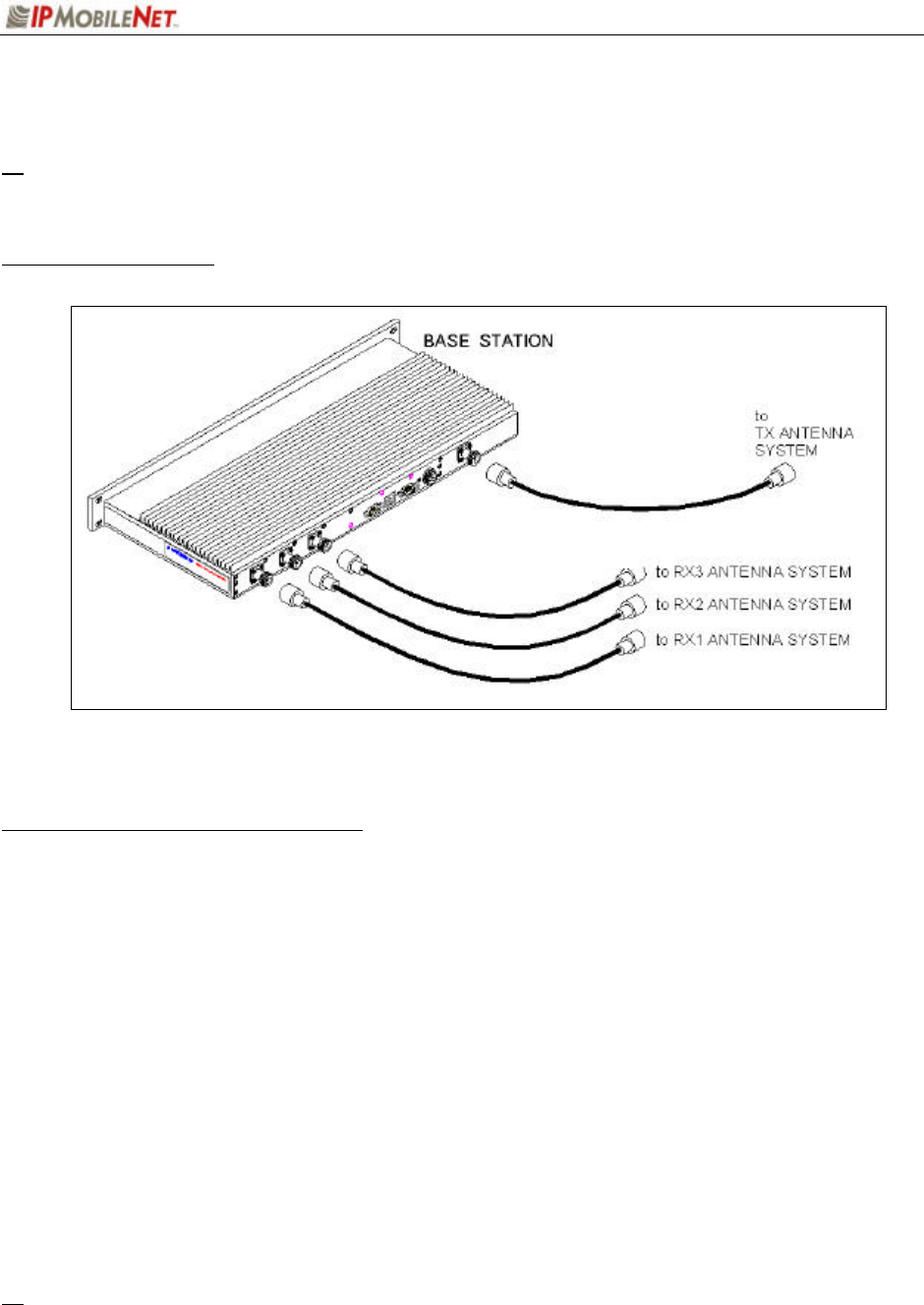

Interconnection Diagram
Figure 11: Interconnection Diagram
Base Station Installation into the Rack Unit
Receiver and Transmitter Connections
To connect the base station, perform the following steps:
Step 1 Connect the RF coaxial cable to Receiver 1 (RX1) on the back of the base station.
Step 2 Route the cable neatly toward the top of the rack. Allow a little slack in the cable to avoid
accidental disconnection.
Step 3 Connect the RF coaxial cable to Receiver 2 (RX2) on the back of the base station.
Step 4 Route the cable neatly toward the top of the rack. Allow a little slack in the cable to avoid
accidental disconnection.
Step 5 Connect the RF coaxial cable to Receiver 3 (RX3) on the back of the base station.
Step 6 Route the cable neatly toward the top of the rack. Allow a little slack in the cable to avoid
accidental disconnection.
! For clear identification for troubleshooting and/or maintenance activities, avoid crossing the
coaxial cables.
