Base Station Setup
Intended for rack unit configuration, the base station can be installed in an existing rack or assembled into
a rack of its own.
Rack Unit Mounting

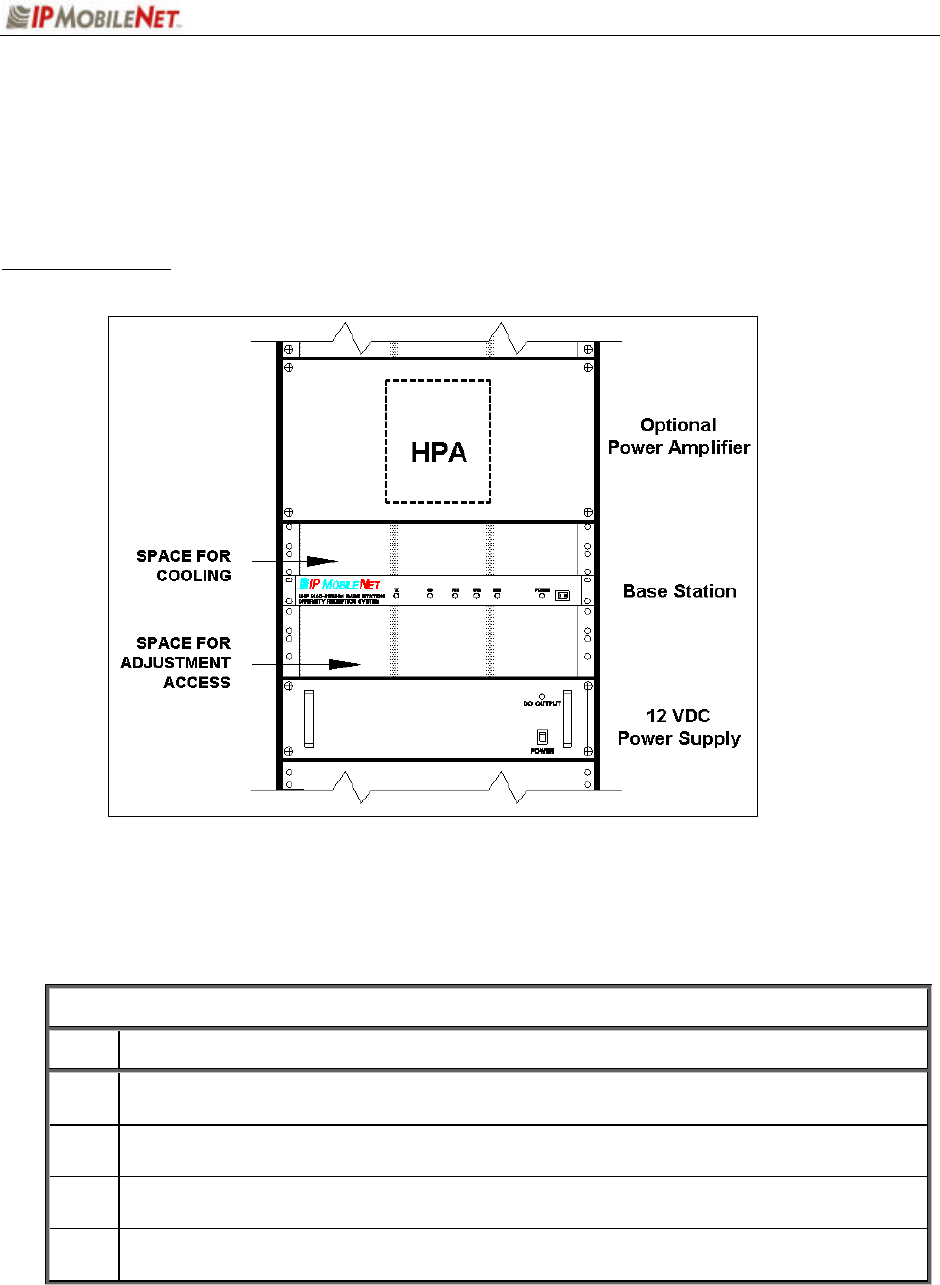

Figure 7: Base Station Mounting in the Rack Unit (Front View)
Table 5 lists the required components for a base station setup.
TABLE 5: BASE STATION COMPONENTS REQUIRED FOR INSTALLATION
QTY DESCRIPTION
1 Frequency appropriate IPSeries Base Station
1 Ethernet cable
1 5’ DC power input cable with connector
4
RF coaxial cables (may require an additional cable if connecting the base station to a
power amplifier)
