Network Connection to an Existing LAN

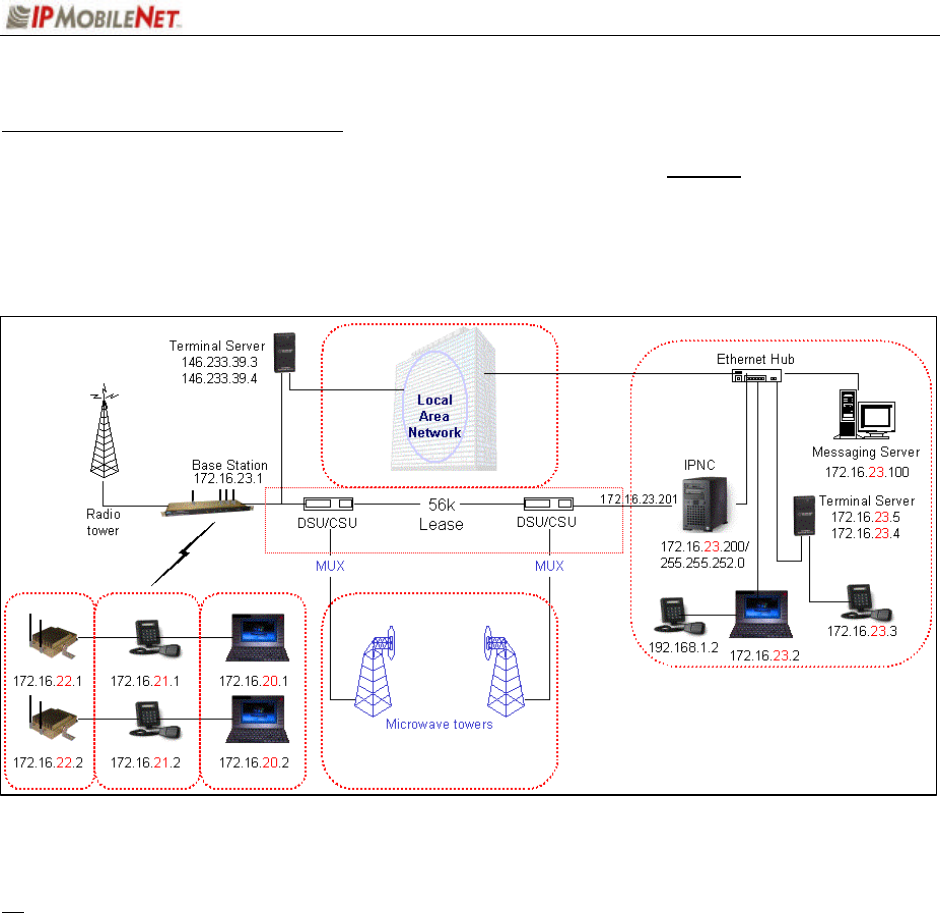

Figure 6 depicts network connection to an existing LAN (local area network) inclusive of one (1) IPNC,
one (1) base station, and a range of mobile radios, VIUs (voice interface units), mobile computers, and
additional components that can interface with the system. This diagram also shows a LAN VIU as well as
Terminal Server VIU.
Figure 6: Network Connection to an Existing LAN
! For serial connectivity to Ethernet only systems, please refer to the IPTurbo Converter Quick
Reference Guide (IPMN p/n: 516.80496.QR) on the Production Documentation CD (IPMN p/n:
480.0001.001).
