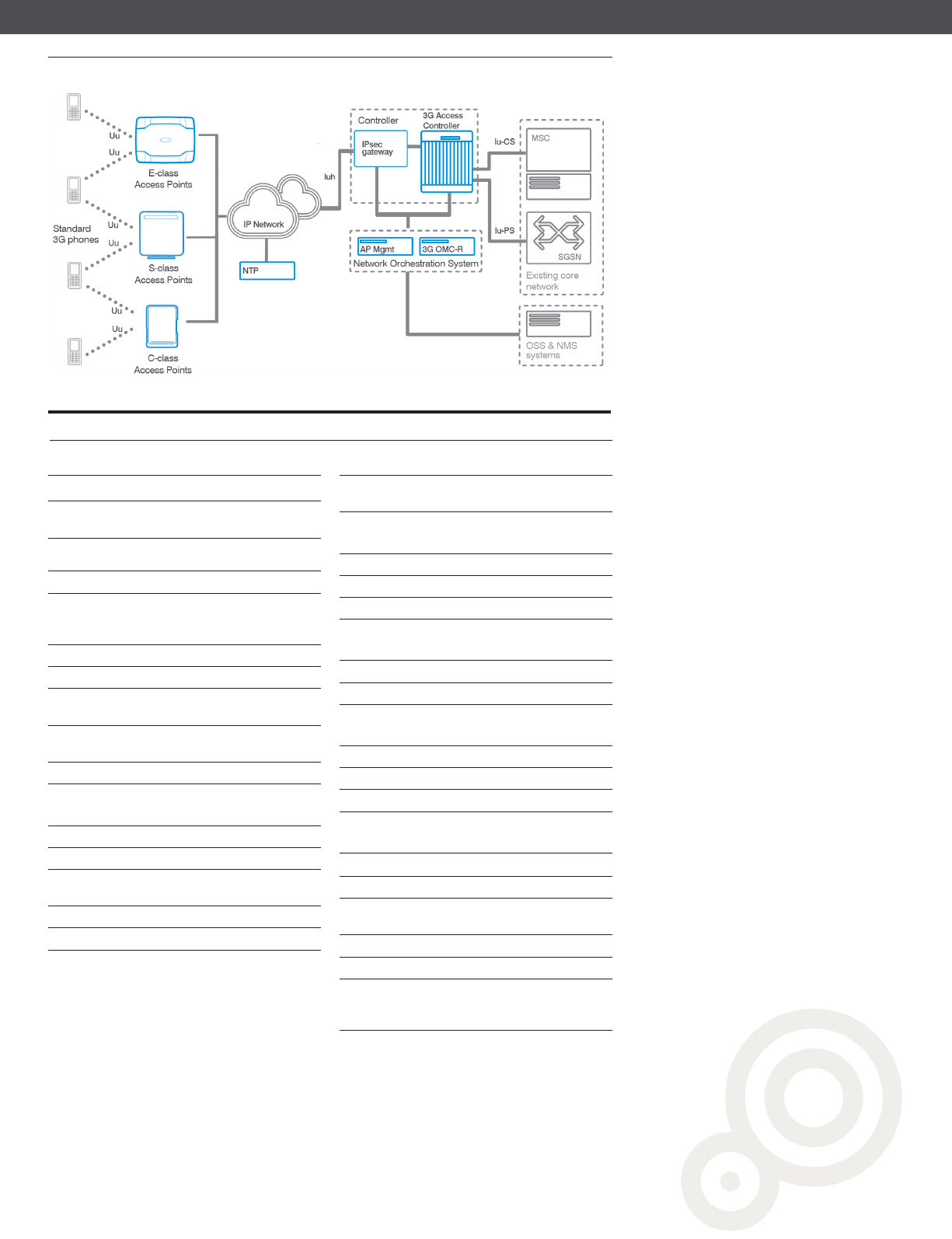

The nano3G end-to-end solution
www.ipaccess.com
E-class picocells
E16 AP E24 AP
Simultaneous
dedicated users
16 24
RF Output Power 250 mW/+24 dBm
(+13dBm for Band 5)
UMTS bands 1, 2/5, 4
Electrical Power <18 W 12V DC
socket for AC/DC
adaptor
PoE PoE+ integrated
External antennas Optional
Oscillator OCXO better than
100ppb
NTP Time stamp for
certificate validation
Access Mode Open/closed access
Environmental & physical
Dimensions 247 x 213 x 56 mm
Temp. range 0° to 45°C
Operating 10 to 70% non-
condensing
Ingress protection IP40
Mounting Wall Mounted
Network Listen
3G & 2G Network listen to support radio
synchronisation and RF planning
Security
3GPP air interface security
IPsec IKEv2 on AP-SeGW links
X509 certificate authentification with CRL
Interfaces
Iu+ or Iuh interface to AC
Uu air interface to standard 3G UEs
UTRAN mobility
Reselection & handover to/from macro layer
Reselection & handover between APs
Intra-frequency, Inter-frequency, Inter-RAT
UTRAN services
12.2 AMR CS Voice
Rel 99 PS 64/ 128/ 384 kbps
HSDPA to 14.4 Mbps (21 Mbps upgradable)
HSUPA to 1.45 Mbps (5 Mbps upgradeable)
Supplementary Service transparency
SMS, MMS, Cell Broadcast
Multi-RAB combinations to each UE
Voice+ up to 3 HSPA RABs
Voice+ up to 2 R99 PS
nano3G E-class Access Points
