Instruction Manual

Page 4

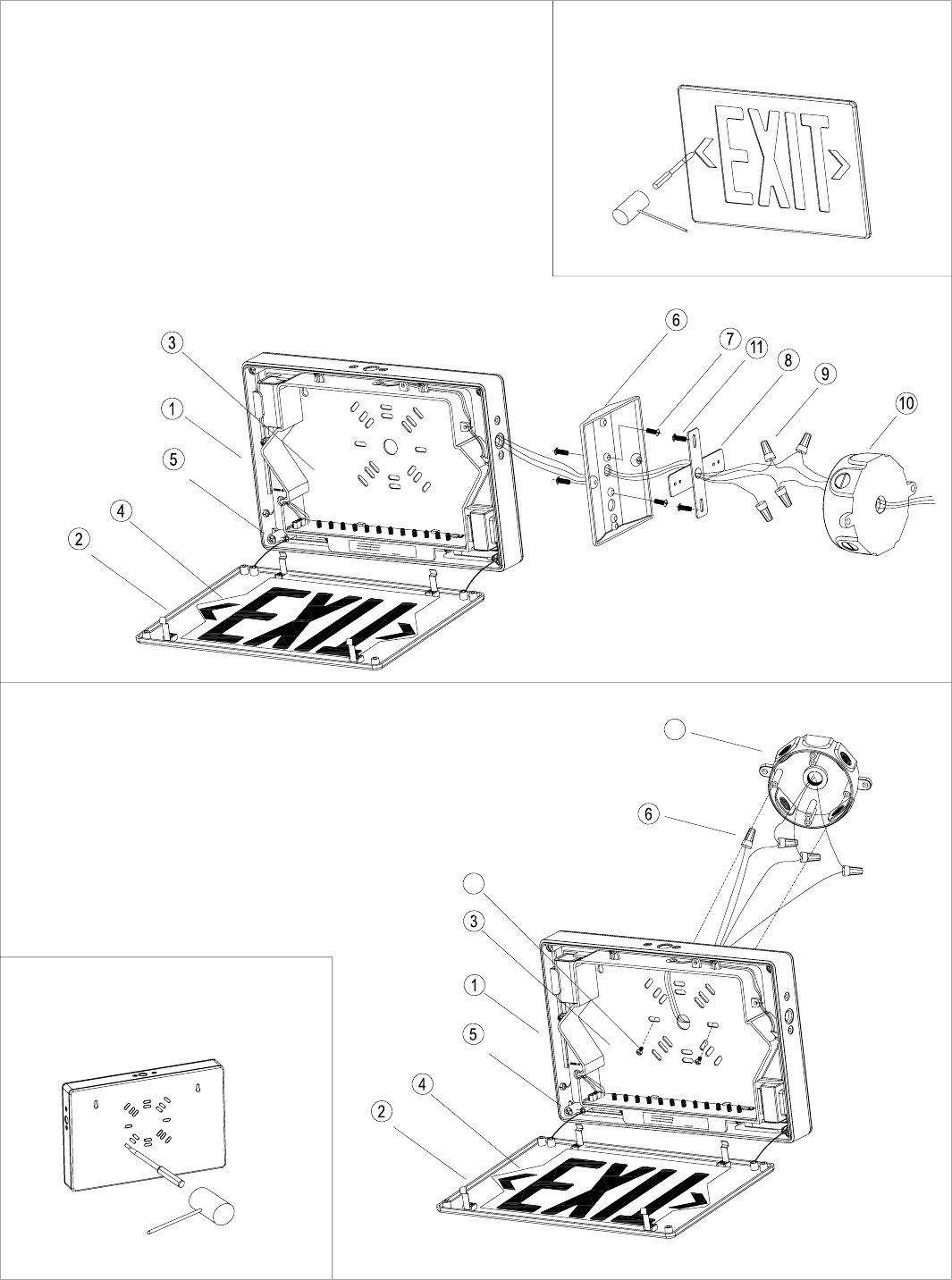

1) Housing
2) EXIT panel
3) Back plate
4) Red or Green diffuser
5) Housing screws
6) Canopy
7) Canopy screws
8) Crossbar
9) Wire nuts
10) Juncon box (Building ulity)
11) Crossbar screws (not provided)
First remove the diffuser, then knock out the chosen
chevron frame from the EXIT panel gently
1) Housing
2) EXIT panel
3) Back plate
4) Red or Green diffuser
5) Housing screws
6) Wire nuts
7) Juncon box (Building ulity)
8) Crossbar screws (not provided)
REMOVE KNOCKOUTS - DIA. 7
7
8
DIAGRAM 5 - Side Mounting
DIAGRAM 6 - Back Mounting
68905-000 REV 1400
