Users Manual

ISM14585-EVB User’s Manual
DOC-DS-14585-EVB-201911-3.6
Confidential Inventek Systems
Page 3
1 PART NUMBER DETAIL DESCRIPTION
1.1 Ordering Information
Device
Description
Standard Ordering Number
ISM14585-L35-P8-EVB
Internal Antenna
Evaluation Board
BLE 5.0 + Cortex M0
Module with integrated
PMU, PA, 8Mb of Flash and
internal antenna EVB
(Evaluation Board)
ISM14585-L35-P8-EVB
ISM14585-L35-P8-EVB-W
w.fl External Antenna
Evaluation Board
BLE 5.0 + Cortex M0
Module with integrated
PMU, PA, 8Mb of Flash and
w.fl external antenna EVB
(Evaluation Board)
ISM14585-L35-P8-EVB-W
B24P-W w.fl Certified
External Antenna
Certified w.fl External
Antenna to accompany the
ISM14585-L35-P8-EVB-W
External Antenna EVB
option
B24P-W
Note:
• The Dialog DA14585-00ATDEVKT-P Development Kit – Pro Motherboard EVK must also be purchased in
order to use the Inventek ISM14585 L35-P8-EVB evaluation board.
• There is no difference in the module footprint between the internal and external antenna options for the
module. Pin 34 RF Out would either go to the internal antenna pad Pin 35 or out to the w.fl connector,
enabling maximum performance optimization for customers that want to evaluate both antenna
configuration options without having to change their PCB layout. Please reference Section 8.4 for
Internal Antenna Layout and Section 9.1 for External w.fl Antenna Layout.

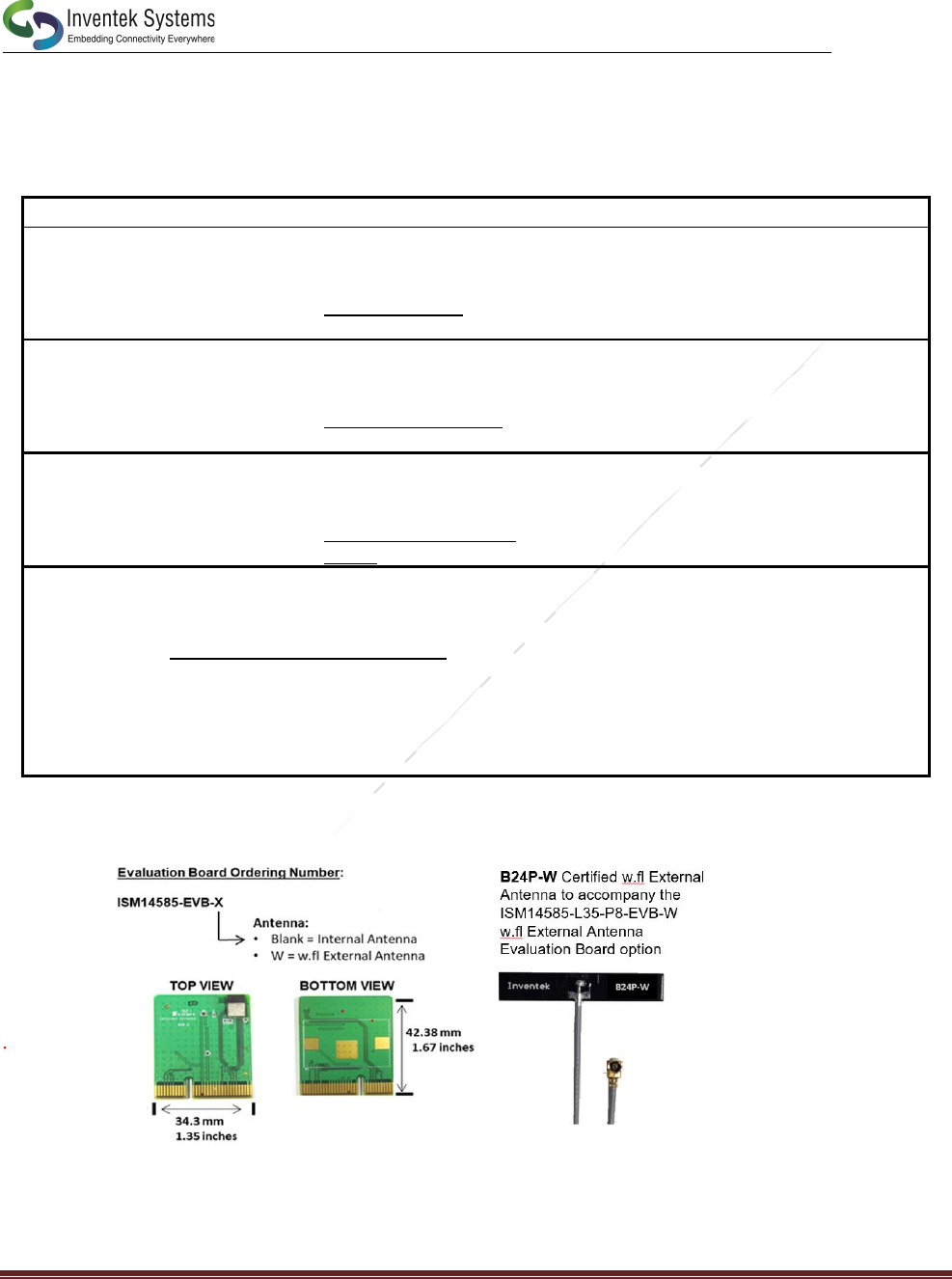

1.2 Ordering Information Configuration
NOTES:
• Dialog CodeLess AT Commands also supported.
• For additional configuration options please contact Inventek Systems
