8.2 Configuration Example 2:
8.2.1 Top View

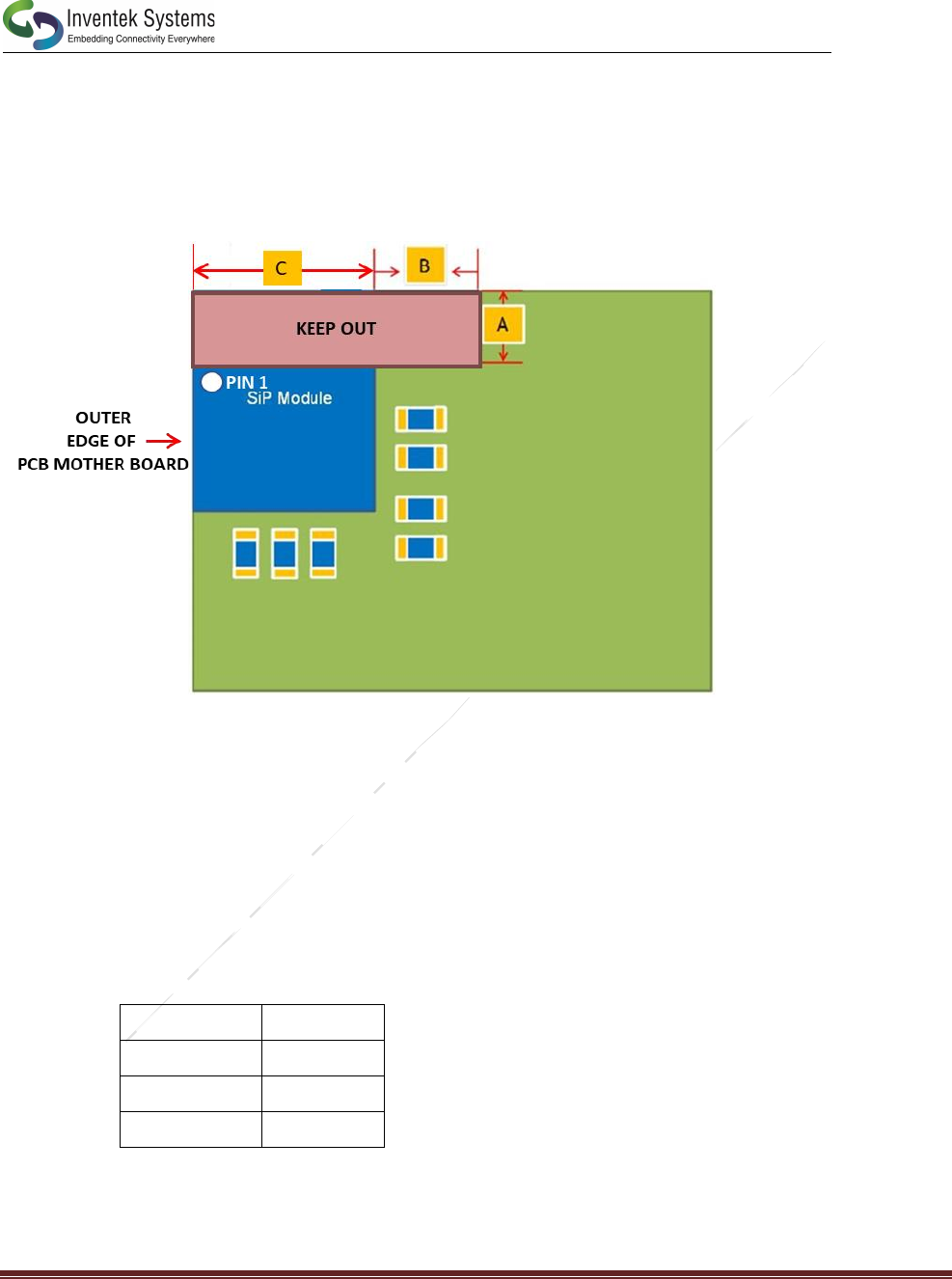

Configuration Example 2 recommended design:
• Position the ISM14585 module near the PCB edge.
• Route the keep out for 3mm
• A: 3mm typ.
• B: >= 3mm typ.
• C: KEEP OUT extends the entire width of the module (6mm typ)
• NOTE: There should be NO Copper in the KEEP OUT area for all Layers except for the
internal RF Antenna Trace (Please reference Section 9.0).
Parameter
Unit: mm
A
3.0 (typ.)
B
3.0 (typ.)
C
6.0 (typ)
