User's Manual

 Digital Wireless Receiver

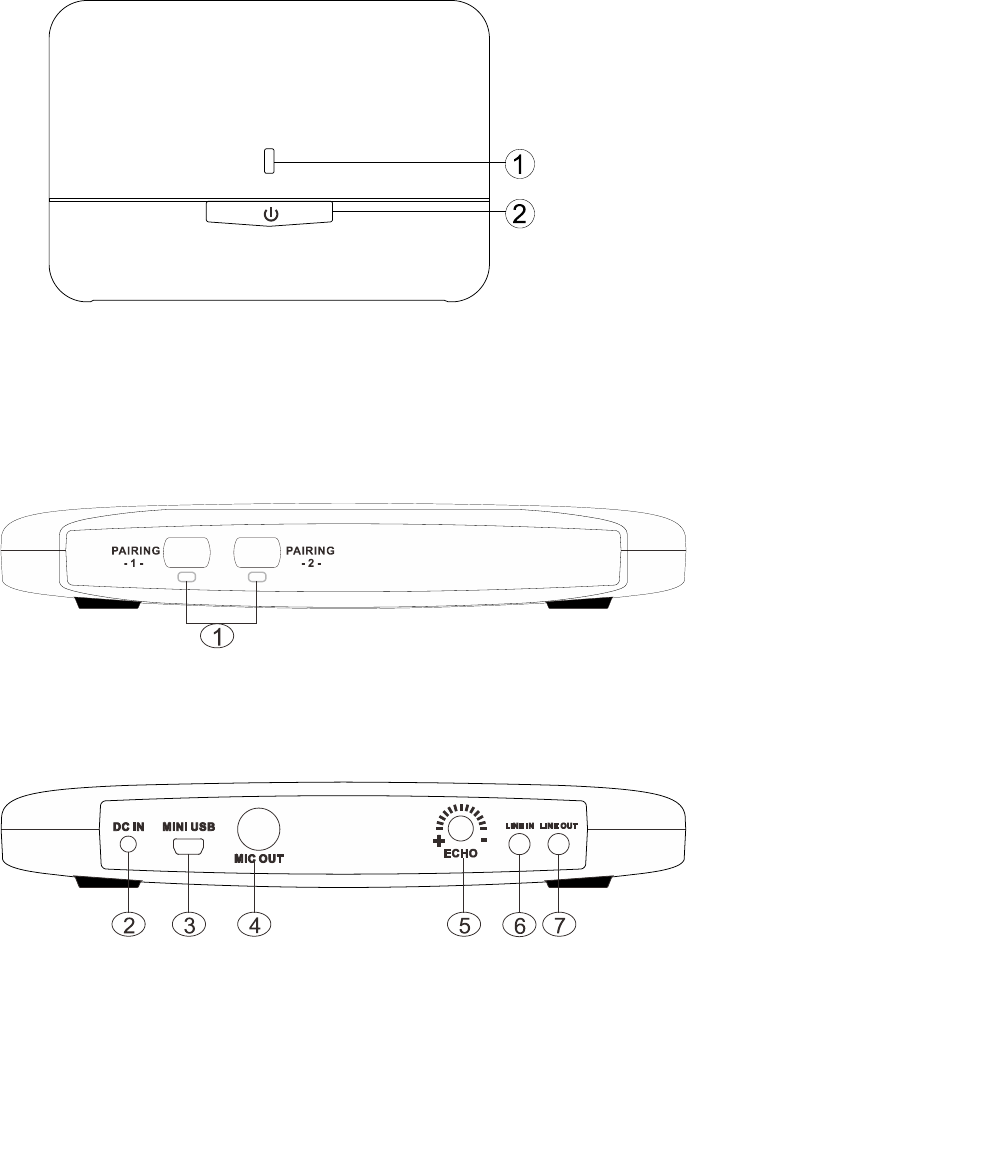

I. Parts of Introduction
Up Side
1. Light of Power ON/OFF：Green light is on when it is powered on, standby is red.
2. Power ON：Press &hold for 2 seconds (light from red to green) to turn on the receiver.
Power OFF：Press &hold for 3 seconds (light from green to red) to turn off the receiver.
Front Side
1. Match Button on Microphone(MIC1、MIC2): It is used for match between microphone and receiver.
Back Side
2. DC In: Connect Power Supply and Input power at 5V (DC).
3. MINI USB: Connect to PC/ Notebook, as the switch of previous/next page in presentation mode
4. Audio Output (MIC): ψ6.3mm audio output hole connects receiver to power amplifier (mixer)
5. Echo Control: Echo effects control
6. LINE In: Connects to background music or Karaoke music
7. LINE Out: Connect 3.5mm cable or connect to powered speaker through composite video connector
II. Installation and Operation of Receiver:
1. Connection of Power Input：
Connect input side of 5V（DC）Power Supply to power input hole and connect the other side to AC Power
Outlet.
(▲Note：AC Power spec of POWER SUPPLY must fit with voltage range locally.)
