COMMUNICATIONS
Frequency
Fixed reader/programmer board
set only: 915 MHz unlicensed FCC
spread-spectrum frequency-hopping
Intermec 2100 UAP with fixed
reader/programmer module: 915
MHz unlicensed FCC spread-
spectrum frequency-hopping
Interfaces
Fixed reader/programmer board
set: serial interface
2100 UAP:
10BaseT
10Base2
(Optional)900MHz, 2.45 GHz
OpenAir™, IEEE 802.11 Direct
Sequence, or IEEE 802.11 Frequency
Hopping RFLAN
SOFTWARE FEATURES
Protocols
Fixed reader/programmer board
set: Intermec ASD interface
specification
Intermec 2100 UAP with fixed
reader/programmer module:
available software fully supports the
ANS NCITS 256-1999 for item
management
Data Rate
Read 8 bytes of data from tag in less
than 12 ms
Write a single byte of data to a tag in
less than 25 ms
Multitag Access
User-specified groups within a
population of tags can be selected,
read from, and/or written to using
multitag access commands.
POWER REQUIREMENTS
Fixed Reader/Programmer
Board Set Only
8 VDC
2100 UAP
100-240 VAC auto-ranging
ENVIRONMENTAL
Operating Temperature
0ºC to +50ºC (+32ºF to +122ºF)
Storage Temperature
-20ºC to +70ºC (+4ºF to +158ºF)
OPTIONS
General-Purpose Input/Output
Circuits (reader/programmer)
Interfaces for input and output
circuits to monitor sensors and
control other devices
READ/WRITE PERFORMANCE
Read/write performance varies with
RFID inserts, tags, and antenna
configurations.

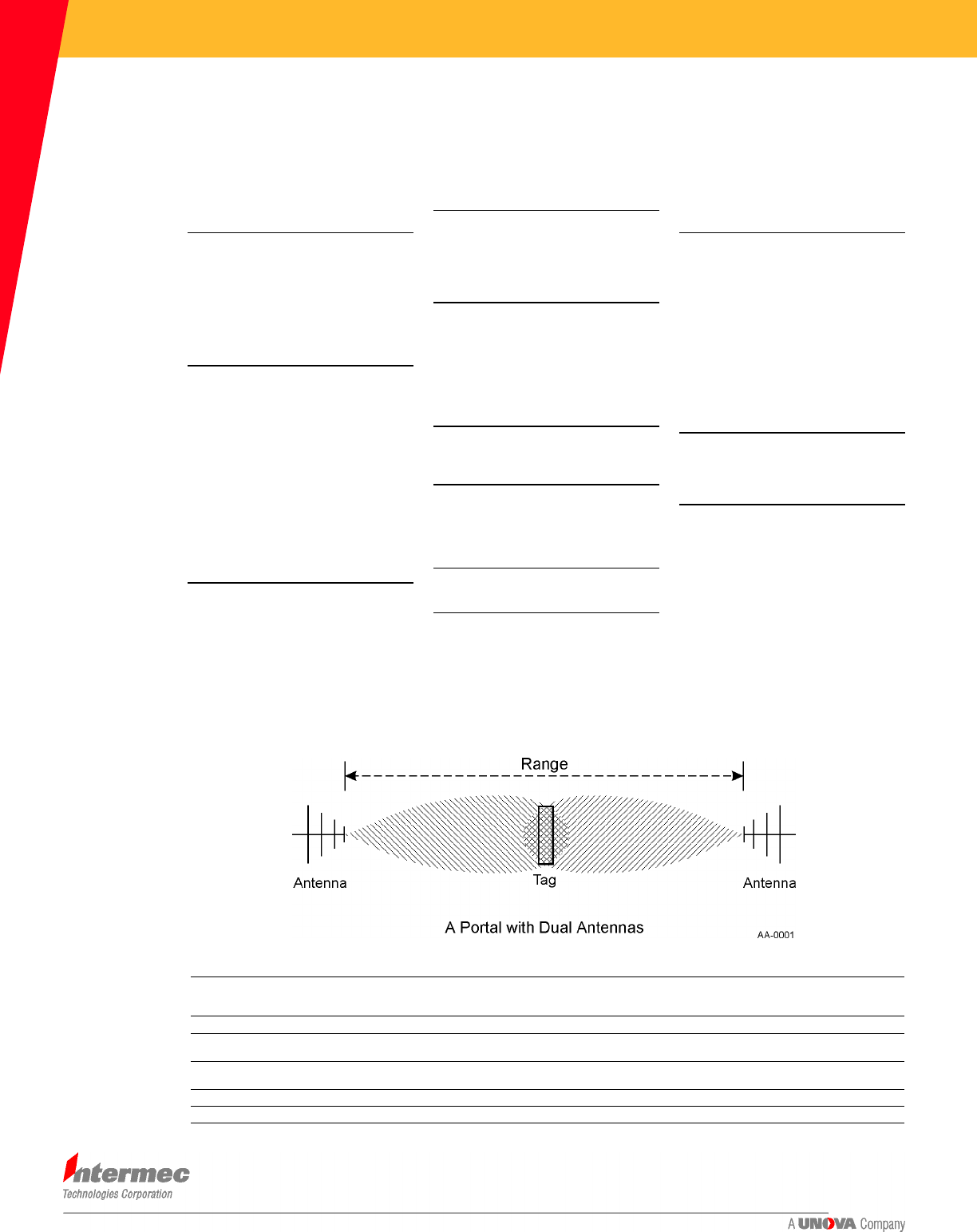

Sample dual antenna configuration is
illustrated below.
Read/Write Ranges
Write ranges are approximately 70%
of the effective read ranges of the
RFID insert and tag.
Read Range Examples
Ranges are listed for RFID insert and
tag using frequency-hopping FCC
unlicensed operation reader and dual
antennas.
6 Meters (19.68 ft): 915 MHz 16 x
100 x .4 mm (.63 x 3.94 x .016 in)
RFID insert
7 Meters (22.96 ft): 915 MHz 33 x
105 x 3 mm (1.30 x 4.13 x .12 in) tag
Intellitag 500 Series UHF OEM Reader Products
®
411462-003 8/99
