Printhead Replacement, cont'd.

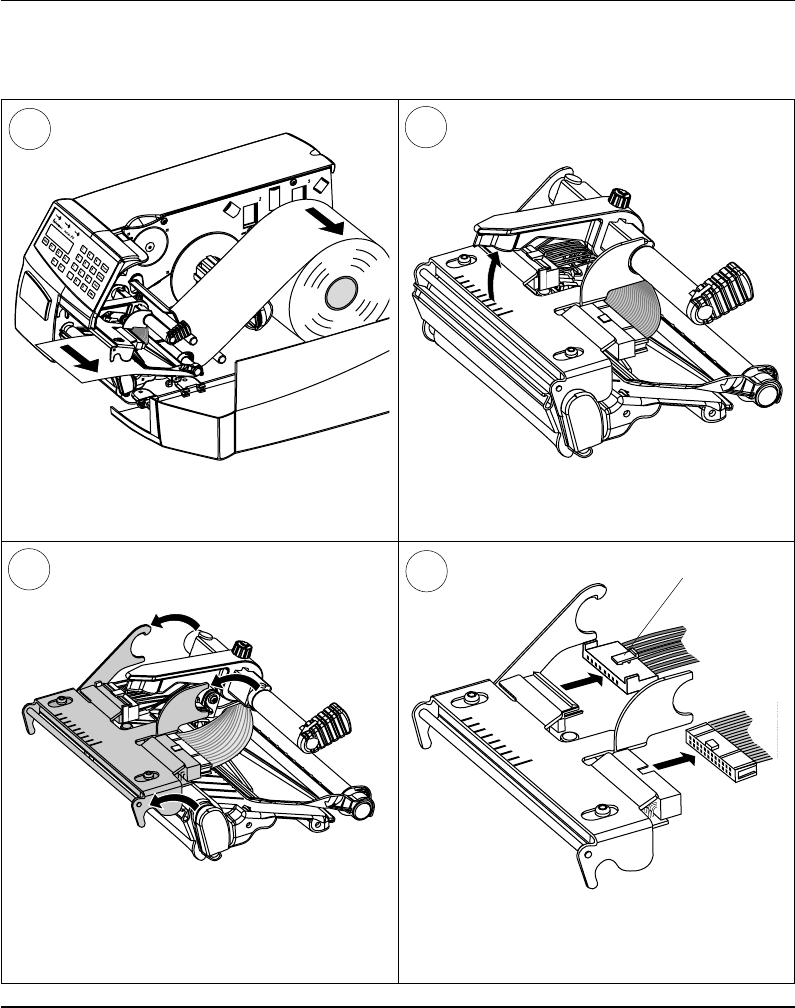

Pull the printhead bracket away from the
magnet in the pressure arm.
3
4
Disconnect the printhead bracket from the print
mechanism – as indicated by the arrows – and
pull out the printhead as far as the cables allow.
6
5
Disconnect the cables from the printhead. Note
the snap-lock on the inner connector. Pull at the
connectors – not the cables!
Remove the paper, if any.
Snap-lock
