Chapter 2 — Installing the Printer
6822 Series 80-Column Printer User’s Manual 15
2 Adjust the pinfeed holder position so that the pins align with the
paper.
3 Close the pinfeed holder.
4 Ensure that the paper is smooth (no folds, bulges, bows, etc.)
between the pinfeed holders. If so, push the locking tab down on the
pinfeed holder that you adjusted.

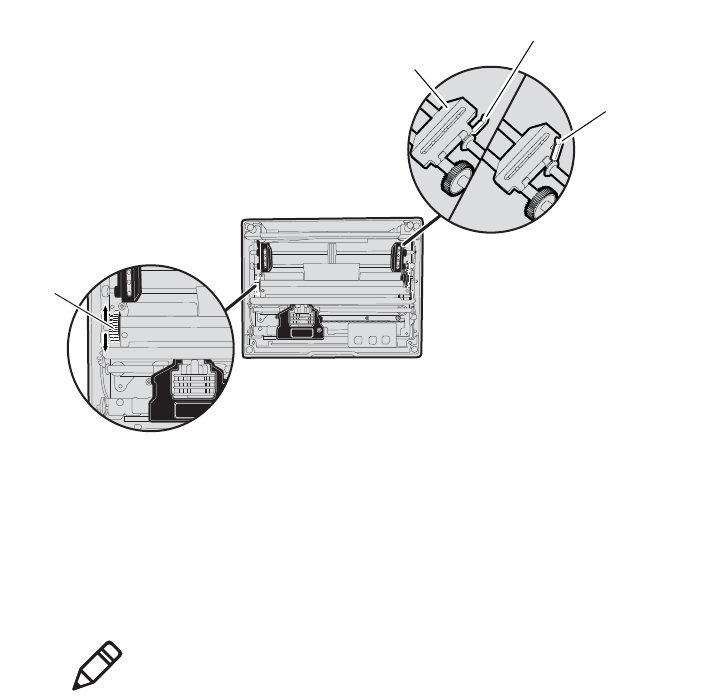

Adjusting the pin feed holders
To feed paper into the printer
1 Press Form Feed button to feed the paper into the printer.
2 Lower the paper bail. An empty printer autofeeds new paper
approximately 0.25 cm (0.1 in) beyond the top of the paper bail.
Thumbwheel
(green)
Pinfeed
holder
Locked pinfeed
holder locking tab
Released pinfeed
holder locking tab
Note: The ideal distance to feed paper beyond the paper bail
may vary due to environmental conditions (such as humidity)
and specific aspects of certain paper. Use the green thumb
wheel to position the paper to a desired distance according to
your conditions.
