Chapter 2 — Installing the Printer
14 6822 Series 80-Column Printer User’s Manual

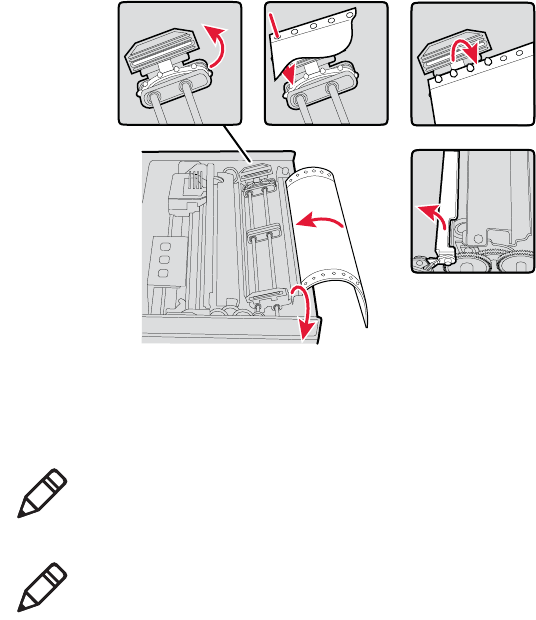

2 Take the top edge of the sheet of paper and position it, original side
facing down, over the pinfeed holder pins.
3 Align the first few holes of the paper, on each side of the paper, onto
the pinfeed holder pins.
4 Close the pinfeed holders.
5 Raise the paper bail.
Positioning the paper
Adjusting the Pinfeed Holders
To adjust the pinfeed holders
1 With the pinfeed holders open, release the locking tab on the pinfeed
holder opposite the green thumb wheel.
1
2
3
4
5
Note: There are two pinfeed holders, one next to the green
thumb wheel and one opposite the same wheel. Always loosen
the pinfeed holder opposite the green thumb wheel.
Note: Adjusting the pinfeed holder next to the green thumb
wheel may cause information to print in the wrong place. If this
pinfeed holder is moved, correct its location by releasing the
pinfeed holder tab, moving the pinfeed holder as close to the
green thumb wheel as possible, then locking the pinfeed holder
tab, before adjusting the opposite pinfeed holder.
