Chapter 2 — Installing the Printer
6822 Series 80-Column Printer User’s Manual 11
Installing the Ribbon Cartridge
Make sure there is a ribbon cartridge in the printer before you print and
that the ribbon is fully seated (the cartridge makes a distinct “snap” or
“click” when properly seated) with the visible portion of the ribbon
straight and even.
To install the ribbon cartridge
1 Turn the ribbon advance knob (in the direction of the raised arrows)
to remove any slack in the ribbon.
2 Squeeze the ribbon cartridge locking tab into the cartridge, then
lower the cartridge over the printhead.
3 Lower the tab side of the cartridge until it clicks.
4 Release the tab and press down on the arrow to fully seat the ribbon
cartridge (tab clicks outward).
5 Turn the ribbon advance knob (follow raised arrows) to align the
ribbon in the front of the printhead.

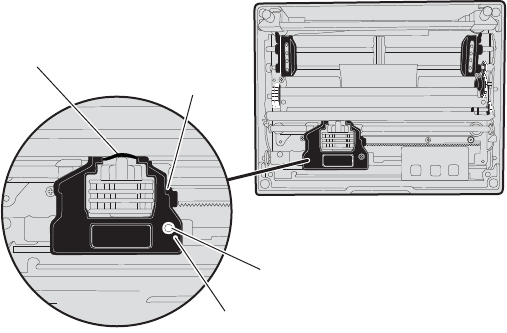

Installing the ribbon cartridge
Ribbon
Locking
tab
Advance knob
Tighten ribbon
