Chapter 2 — Installing the Printer
10 6822 Series 80-Column Printer User’s Manual
Installing the Internal Battery
The optional internal battery is primarily for portable printers. The
battery can go in some fixed mount printers using a cable and a factory-
installed adapter.
The printer battery recharges automatically when the printer is
connected to an external power source. For most installations, the
external power source is passed through the printer to the mobile
computer. The printer battery does not provide charge to the computer.
To install the internal battery
1 Unlatch and open the printer mechanism.
2 Lower the battery into the rear of the printer case, as shown.
3 Attach the battery cable to the battery.
4 Push the battery down and back under the back edge of the case. The
battery should snap into place.
5 Close and latch the mechanism.

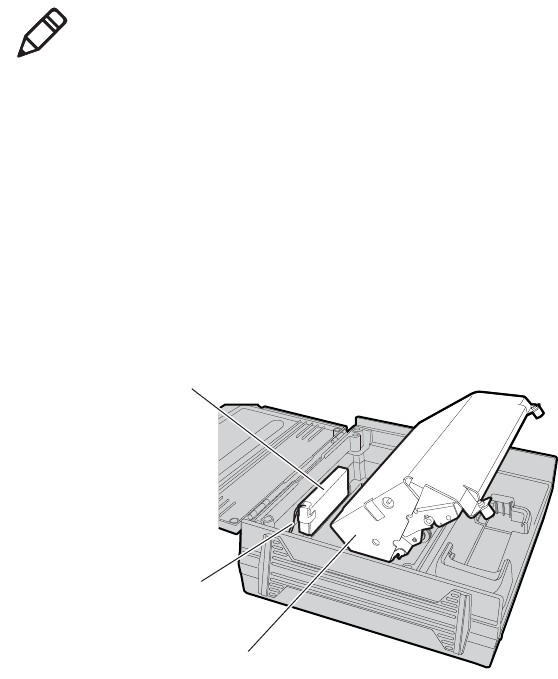

Installing the internal battery
Note: Remove the printer battery when storing a printer for
more than 30 days. After storage, reinstall the battery and
connect the printer to an external power source for at least 14
hours to recharge the battery.
Printer mechanism
Battery cable
Battery
