Chapter 1 — Using the Printer
6822 Series 80-Column Printer User’s Manual 3
Guidelines for Operating the Printer
• Make sure that you mobile computer remains connected to the printer
when printing or operating.
• Keep the printer cover closed except during maintenance or when
loading paper.
• Make sure the paper is properly installed in the paper tray or
dashboard mount.
• Disconnect the printer power cable when jump-starting the vehicle.
• Make sure your printer is loaded with paper before communicating
with your mobile computer.
• Do not spill liquids or food crumbs into the printer.
• Do not use solvents or abrasive cleaners on the printer.
• Do not rest objects on, under, or against the printer.
• If the printer is attached to a vehicle electrical system, do not start or
stop the vehicle engine while printing.
• Do not overload the paper tray or paper jams will occur.
Understanding the Control Panel
The printer control panel has four status indicators in the top row and
three buttons in the bottom row. Three indicators blink when there is a
problem. The three buttons adjust and align the paper.
Understanding the Status Indicators

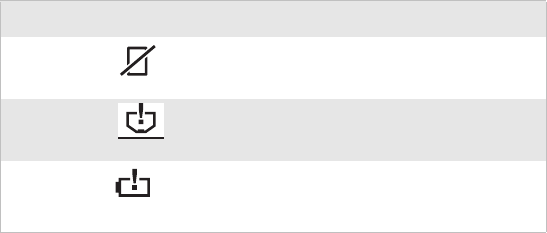

Description Indicator Description
Paper Out The printer is out of paper.
Head Jam The printhead is jammed and cannot
move.
Low Battery The internal battery voltage, the vehicle
battery voltage, or the power module
voltage is too low.
