38 TruVision NVR 20 User Manual
during periods when Schedule Recording (Time-Lapse) occurs without motion
detection set to the same schedule.
Recording Mode Motion Detection Set 7x24 Motion Detection Not Active
during Schedule Recording
Periods
Scheduled (Time-Lapse) During motion detection –
cameras will be recorded at
the Main (Event) rate
Recording will be at the time-
lapse rate
Motion/Event Recording Mode Recording at Motion/Event
Record Rate
Recording will be at the time-
lapse rates
Live Viewing Live viewing during an event
will be at the Motion/Event
settings
Live viewing if motion/event not
active during Scheduled
Recording (Time-Lapse)
periods will be a the time-lapse
rate

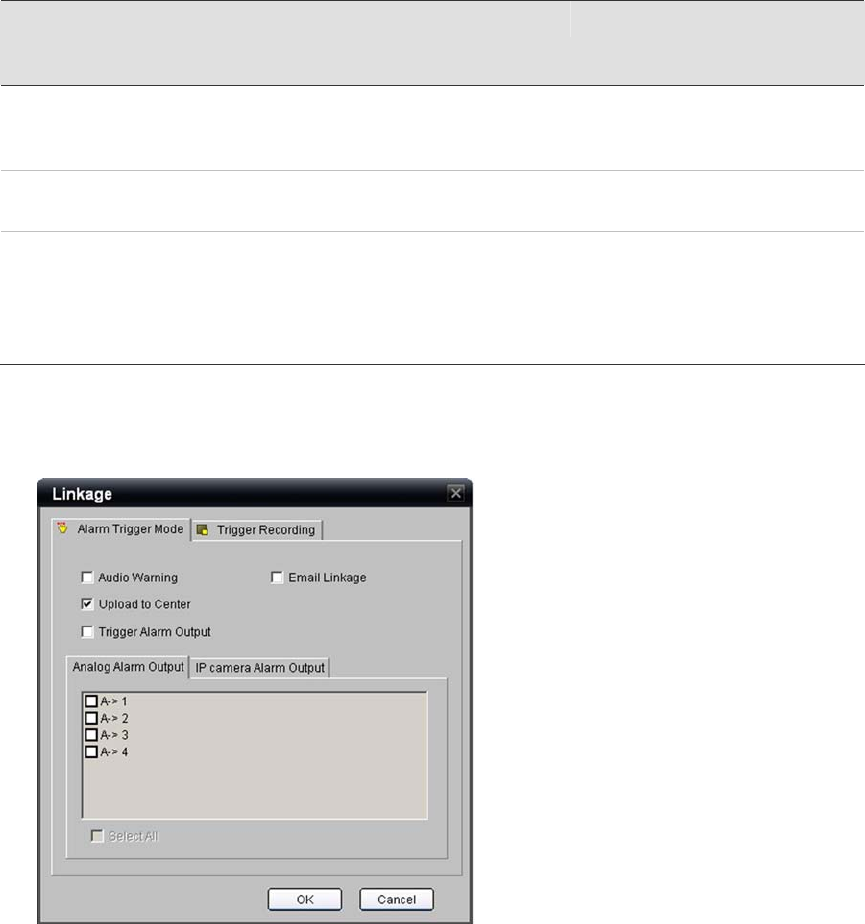

16. From the main Motion Detection page select Linkage: Settings to define the
TVN 20’s response to a Motion Event.
17. Under the Alarm Trigger Mode tab select Audio Warning to trigger a local
box audible upon an event.
18. Upload to Center should be checked for Interlogix TruVision Navigator
notification.
19. Trigger Alarm Output to fire one or more of the TVN 20’s alarm outputs.
20. Email Linkage if you want the event to send off an email.
21. If Trigger Alarm Output is enabled, the user can switch one or more of the
Alarm Outputs under the Analog Alarm Output tabs (A->1 thru A->4).
