TruVision NVR 20 User Manual 35

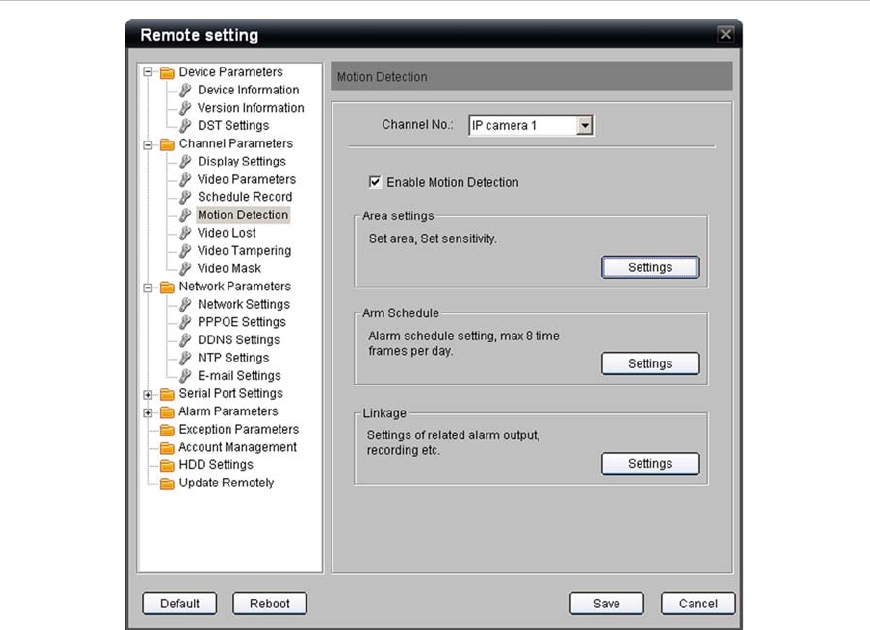

Figure 22: Motion Detection window
1. Select Motion Detection folder from the navigation window.
2. Select Camera 1.
3. Make sure the Enable Motion Detection option is checked.
4. Click on the Area settings button (this button is available if the IP Camera
selected is supported in the TVN 20 for motion area definition). A settings
dialog box opens.
If the IP Camera does not support this function within the TVN 20, then the
Settings button will not be accessible. The user will need to access the IP
camera’s web page to configure Motion Detection Regions of Interest (ROI).
