TruVision NVR 20 User Manual 105
Additional Network Settings
This section describes the additional network features supported by the TVN 20.
It is not intended to replace the requirements of your IT Network Manager.
Please consult with your IT Manager regarding implementation of these settings.
The commonly used settings have been presented in the early pages of this
manual (IP Address, Time-Synchronization, NTP Server, Alarm Host Settings
(TruVision Navigator Software reporting) Daylight Savings Time).
The network topics and settings presented represent more unique application
elements supported by the system. The settings reviewed in this section are:
Multicast
HTTP Port
DDNS
PPPoE
Multicast
Setting up multicasting resolves limitation issues when streaming videos through
a network access device. A multicast address spans the Class-D IP range of
224.0.0.0 to 239.255.255.255. We recommend that the IP address range of
239.252.0.0 to 239.255.255.255 be used.

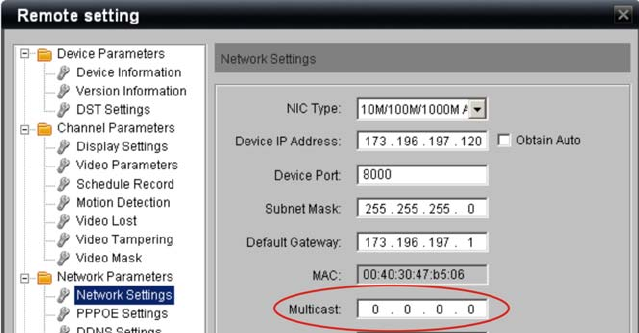

1. Navigate to the Network Settings page from Main Browser Page: Click
Config > under Remote Config area, select Configuration parameters and
then under Network Parameters select the Network Settings option in the
Navigation window.
2. Enter the IP Address of the Multicast Server
3. Click Save to retain these settings.
