Quick Start Instruction Manual

TruVision NVR 20 Quick Start Guide 3‐EN
TVN20frontandbackpanels

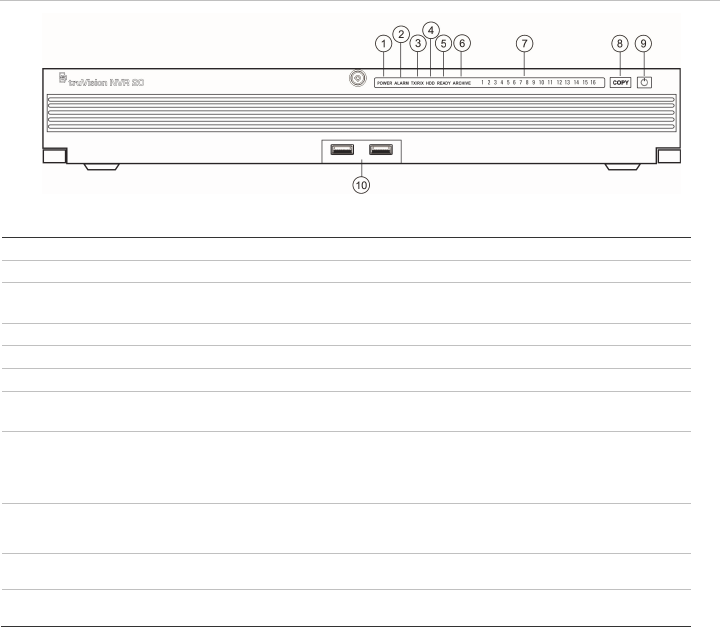

Figure 4: TVN 20 front panel
Table 1: Front panel elements
No. Element Description LED Status Light
1 Power LED Shows that unit is powered Color = Normal
2 Alarm LED Shows if there are any alerts RED = Fault
OFF = Normal
3 TX/RX LED Shows unit is communicating across the network Blue Flashing
4 HDD LED Show read/write activity to the HDDs Red Flashing
5 READY Shows that the unit is full ready to function Blue = Normal
6 ARCHIVE Shows the status of the archive to USB operation. A buzzer alarm
will sound if an incompatible USB device is detected.
Blue = Archiving
7 Channel LEDs Shows the connected status of IP cameras to the TVN 20, also
provides indication of the record mode of channel
View or Scheduled Record (No
Event) = Blue
Event + View (no record) = Red
View or Event + Record = Purple
8 COPY Button When a USB Drive is connected to the USB Port on the front of
unit, pressing the COPY button initiates archiving the most recent
video to the USB drive
Archive LED glows BLUE during
operation
9 POWER Button Pressing this button for 3 seconds allows for a controlled
shutdown of the unit
N/A
10 USB 2.0 Ports
(2)
Used by the Copy button or via Remote Backup managed
through the Browser
N/A
