Manual

EMERGENCY COMBINATION SYSTEM
6
ECS-6216P/S

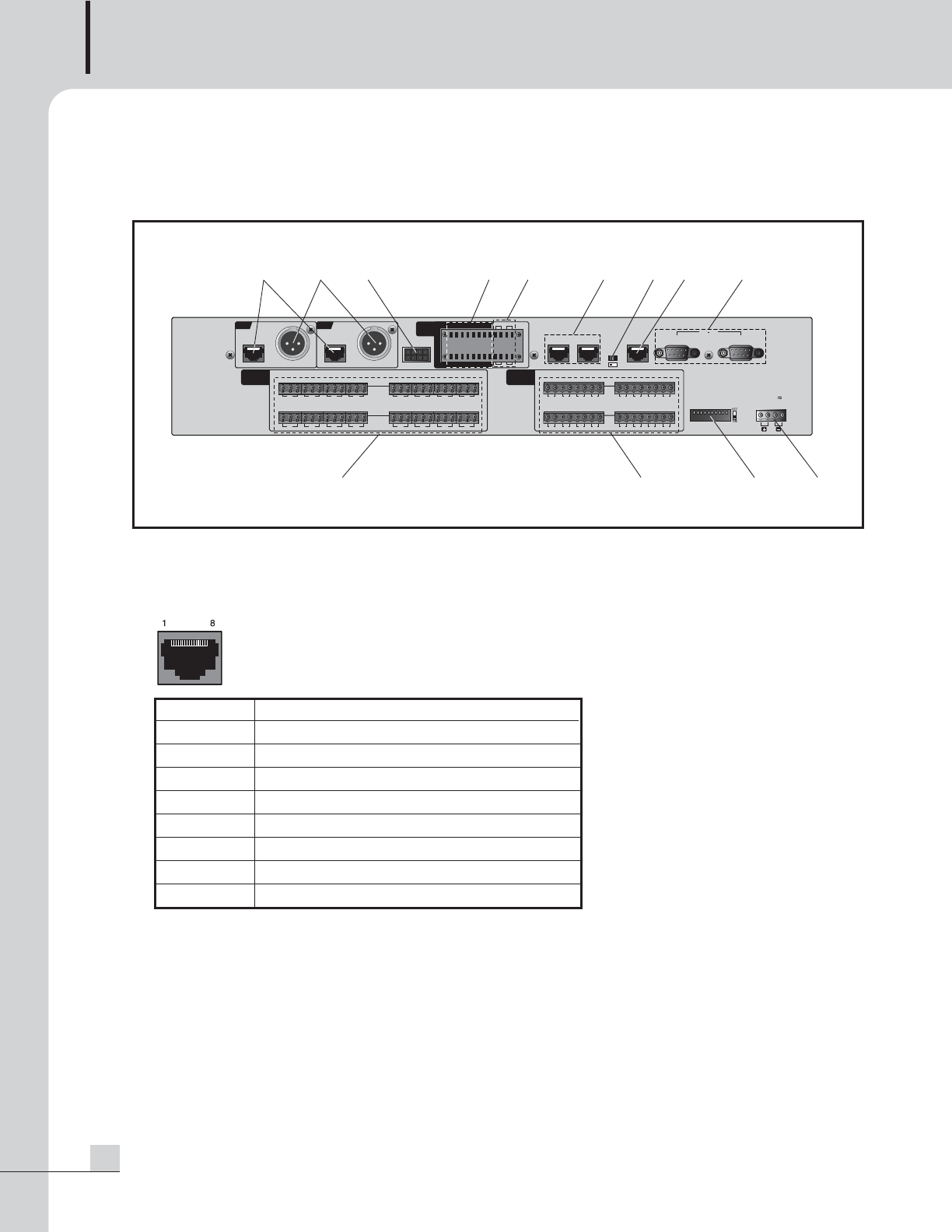

Rear Panel
Rear Panel
1. RM 1,2 COMMUNICATION TERMINAL (EXCLUSIVE FOR ECS-6216P)
Terminal that connects the RM-6024(REMOTE MIC) or RME-6108(RM EXTENDER).
<PIN OUT Specifications>
2. RM1 AND RM2 AUDIO OUTPUT TERMINAL (EXCLUSIVE FOR ECS-6216P)
Terminal that outputs the voice signals from remote MIC input terminal (RM1, RM2).
3. EMERGENCY PANEL (EP) CONNECTING TERMINAL (EXCLUSIVE FOR ECS-6216P)
Connects to the emergency panel (EP) manufactured by Inter-M to control the priority.
(EM/FIRE/TIMER/RM1/RM2).
RM1
INPUT
AUDIO
OUT
AUDIO
OUT
RM2
INPUT
LINK IN LINK OUT UPGRADE
SOURCE 1
RS 232
SOURCE 2
EMG PANEL
/
ADDRESS
12345678910
1234 567 8
9101112 13 14 15 16
1234 5678
9101112 13 14 15 16
TERM.
LOAD OPEN
12345678
910111213141516
FIRE
SENSOR
SPEAKER
OUTPUT
AMP
INPUT
HEHCECEHCE HC EEHCEHCEHC HC HCHCHCHC HCHCHCHC
PD TIMER
EXTCOM
DC 24V
123
10 11 12 13
45 6 78 9
PIN NO. Functions
1 RS-422 Data - RX+
2 RS-422 Data - RX-
3 RS-422 Data - TX-
4 Live Data Input
5 GND
6 RS-422 Data - TX+
7 Balanced Audio Output - HOT
8 Balanced Audio Output - COLD
