User manual

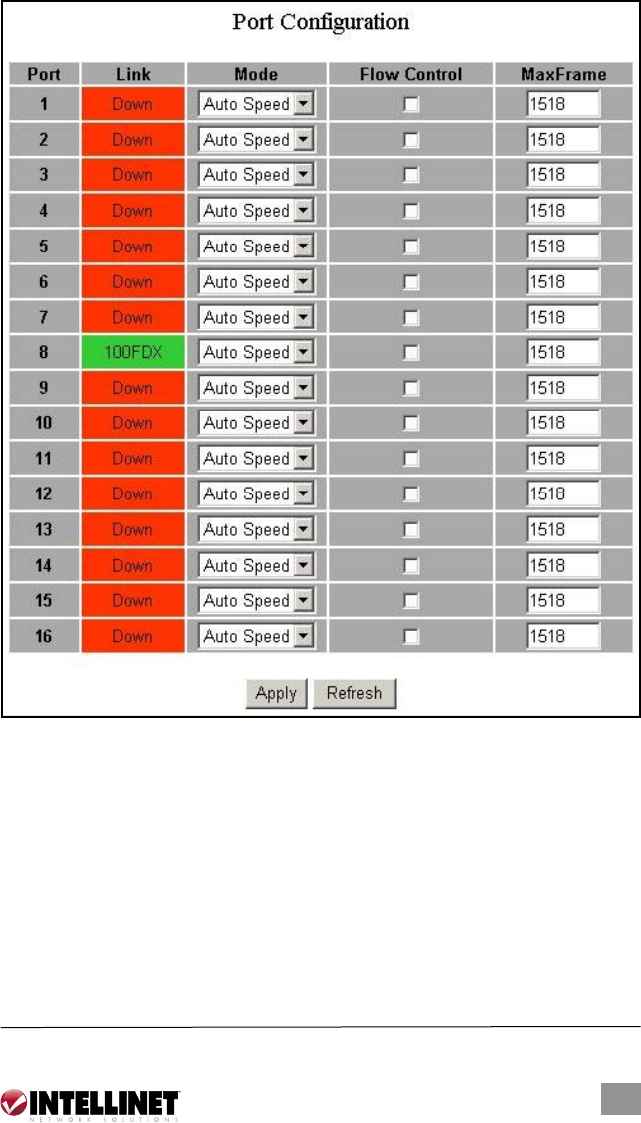

Port Configuration
The Port Configuration page shows the link status of each port and allows the
configuration of speed, flow control and maximum frame size for each port.
Link: Shows the link status of each port. The column lights green with the link
speed while there is a valid connection to this port.
Mode: Select a speed for each port. “Auto Speed” enables auto-negotiation;
“Disable” stops the port from functioning.
Flow Control: Check the boxes to enable FDX flow control; uncheck to disable.
Max Frame: Adjust the size of jumbo frames. The set length is 1518 bytes; the
maximum value can be up to 9216 bytes.
9
MANAGEMENT
*
* 16-port images are used throughout this user manual. 24-port images show identical information.
