User manual

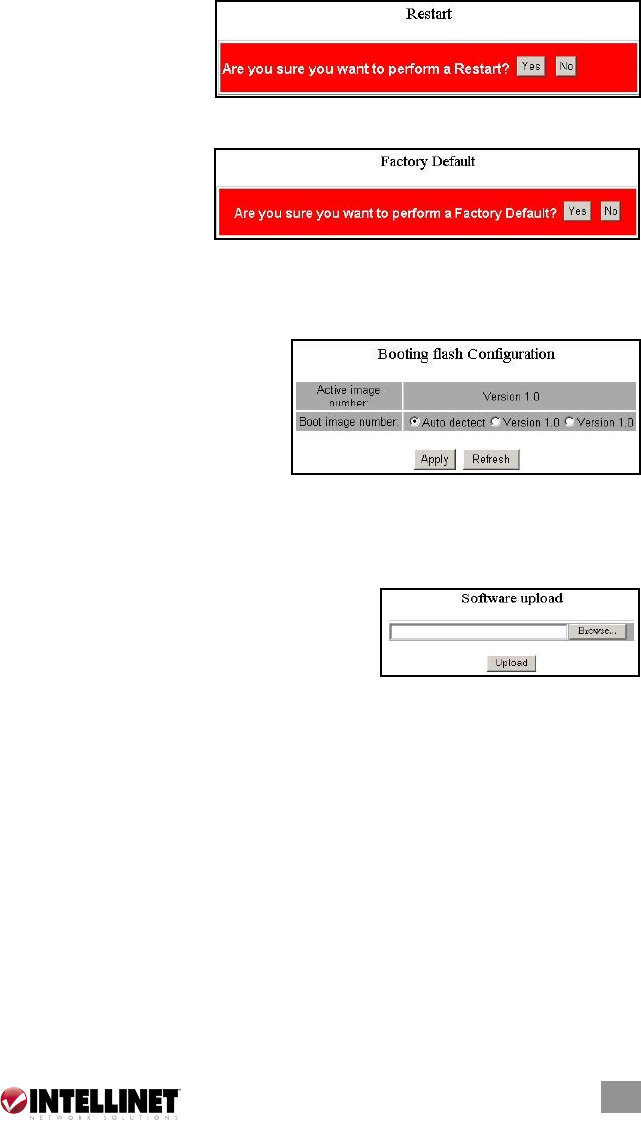

Restart

To restart the system, click

“Yes.” The system will

restart and display the

Authentication window. As before, enter the username and password to continue.

Factory Default

To restore the factory

default values, click “Yes.”

NOTE: The IP address of

the switch will also be conﬁgured as a factory-default setting: 192.168.1.1.

Booting Flash Conﬁguration (Smart Boot)

The Smart Boot page presents the

switch’s booting ﬂash conﬁguration

option. ”Active image number”

shows the current ﬂash for booting

the device. To change the booting

ﬂash, click on the ﬂash version in

the “Boot image number” row and click “Apply.”

Software Upload

The Software Upload page presents the option to upgrade ﬁrmware for the switch.

To perform a ﬁrmware upgrade:

1. Click “Browse.”

2. Locate the ﬁrmware ﬁle.

3. Click “Upload.”

NOTE: New ﬁrmware is going to be applied on the ﬂash that was not

selected in Smart Boot; that is, the new ﬁrmware is going to be applied on

the ﬂash that is not designated as the booting ﬂash. Ensure that the switch is

booted with the correct ﬂash before performing a ﬁrmware upgrade of any kind.

MANAGING WITH COMMAND LINE INTERFACE

Startup and Terminal Conﬁguation

To start up the command line interface, connect a PC COM port to the RS-232

connector and activate terminal emulation software such as Windows HyperTerminal.

Terminal emulation software should be started with the following conﬁguration:

Data rate: 115200 baud

Data format: 8 data bits, 1 stop bit and no parity

Flow control: none
