Aggregation/Trunk Conﬁguration

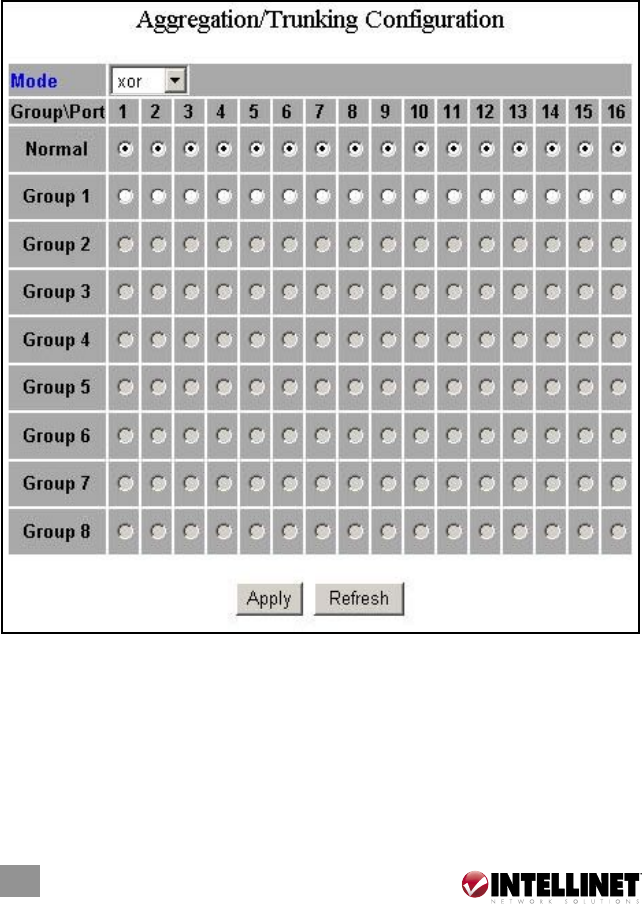

To set up port trunk groups, click in the ports’ number columns on the desired

Aggregation Group row (1–8) per the conﬁguration grid below. Click “Apply”

to save each setting.

There are three aggregation modes to set up: SMAC, DMAC and XOR.

SMAC mode selects the path of packets according to source MAC. DMAC

mode selects paths according to destination MAC. XOR mode calculates the

result of DMAC and SMAC modes to determine the path of packets.
