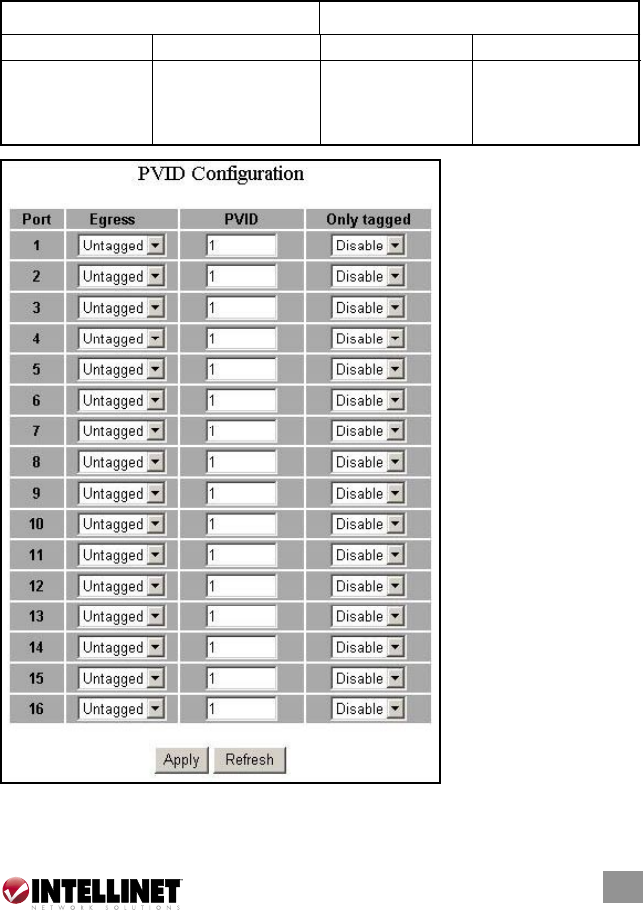

PVID: When the VLAN-enabled switch receives a tagged packet, the packet
will be sent to the port’s default VLAN according to the PVID (port VLAN ID) of
the receiving port. (See below.)
Port: Ports 1–16 or 1–24.
Egress: Select “tagged” in the drop-down menu to enable PVID checking and
tag inserting of one port; select “untagged” to cancel. For example, if an
Egress-tagged port receives an untagged frame, it will be transmitted as a
PVID-tagged frame. For detailed tagging status, refer to the following table:
PVID: Port VLAN ID
(1–4094).
Only tagged: “Enable”
blocks all un-tagged
packets from accessing
this port; “Disable”
allows all packets to
access this port.
MANAGEMENT
Untagged Tagged
Packet Frames In Packet Frames Out Packet Frames In Packet Frames Out
Untagged Untagged Untagged Tagged (PVID)
Tagged Untagged Tagged (VID) Tagged (VID)
Pre-tagged Untagged Pre-tagged Tagged (PVID)
