Web Managed GbE Switch
70
tos Enter ToS in this field.
14-src-port Enter Layer 4 source port in this field.
14-dst-port Enter Layer 4 destination port in this field.
tcp-flag Enter TCP flag in this field.
Action Select the action to take:
Permit: permit packet to pass through.
Deny: drop packet.
Click Apply.

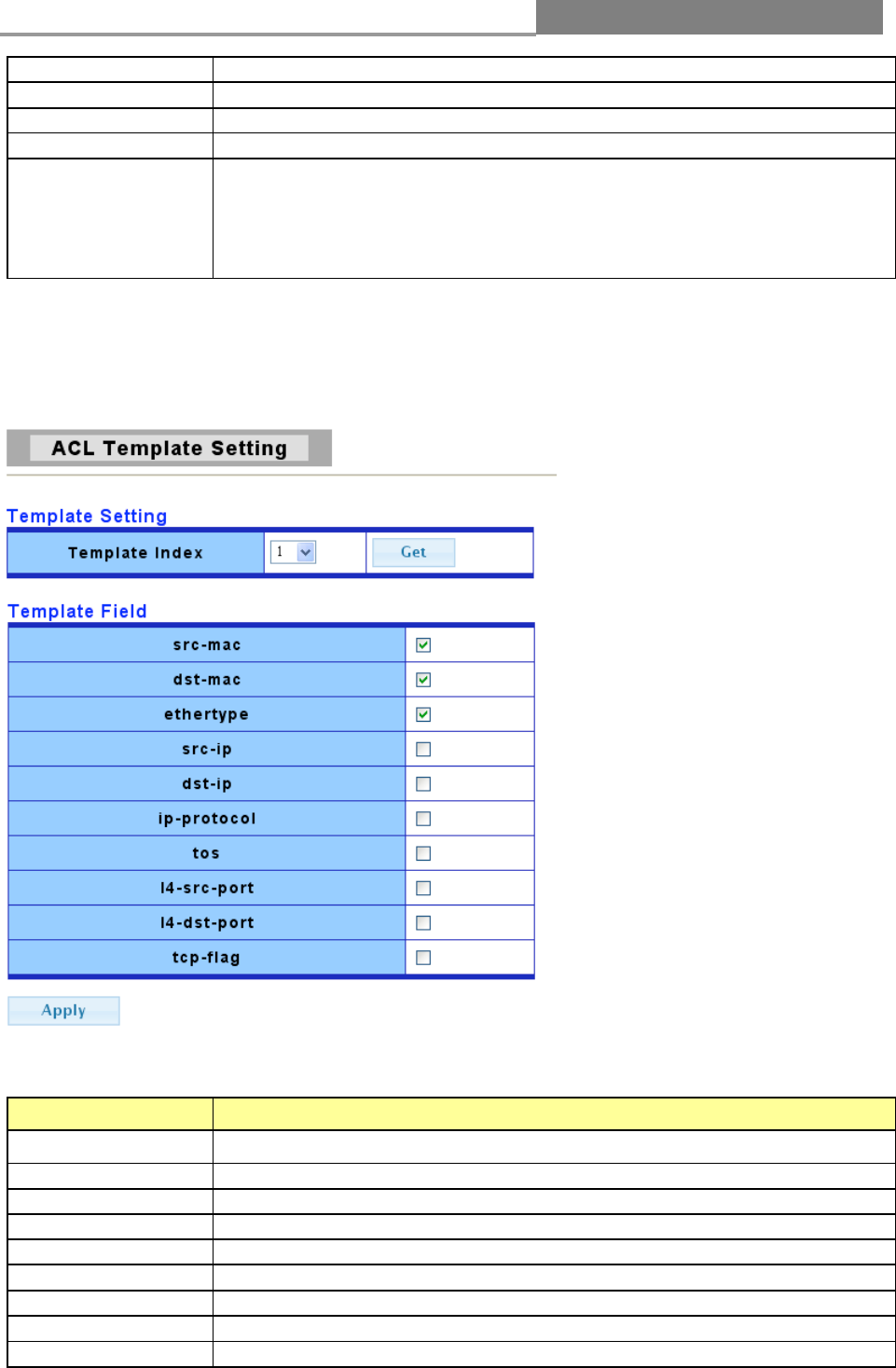

3.5.2 ACL Template Setting
The following table describes the labels on this screen.
LABEL DESCRIPTION
Template Index
You can choose the template index.
Get To get the basic information of the policy index.
src-mac Click in the square box to set source MAC into Template.
dst-mac Click in the square box to set destination MAC into Template.
ethertype Click in the square box to set ethernet type into Template.
src-ip Click in the square box to set source IP into Template.
dst-ip Click in the square box to set destination IP into Template.
ip-protocol Click in the square box to set IP protocol into Template.
tos Click in the square box to set ToS into Template.
