GIGABIT

ETHERNET

SWITCH

USER

MANUAL

MODELS 524117 & 524124

INT-524117/524124-UM-ML1-0712-07

ENGLISH • DEUTSCH

ESPAÑOL • FRANÇAIS

POLSKI • ITALIANO

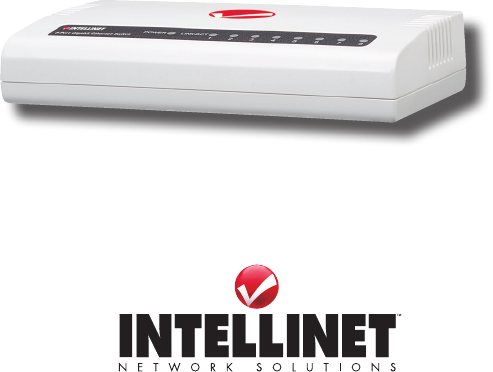

Model 524124,

8-Port

Summary of content (12 pages)

PAGE 1
GIGABIT ETHERNET SWITCH USER MANUAL MODELS 524117 & 524124 ENGLISH • DEUTSCH ESPAÑOL • FRANÇAIS POLSKI • ITALIANO Model 524124, 8-Port INT-524117/524124-UM-ML1-0712-07
PAGE 2
Gigabit Ethernet Switch • User Manual English Thank you for purchasing the INTELLINET NETWORK SOLUTIONS™ Gigabit Ethernet Switch, Model 524117 (5-port) or 524124 (8-port). For specifications, go to www.intellinet-network.com. CONNECTIONS • All ports on the switch support Auto-MDI/MDI-X functionality, so you can use straight or crossover UTP/STP cables to connect the RJ45 ports to PCs, routers, hubs, other switches, etc.
PAGE 3
Gigabit Ethernet Switch • Handbuch Deutsch Vielen Dank für den Kauf des INTELLINET NETWORK SOLUTIONS™ Gigabit Ethernet Switches, Modell 524117 (5-Port) oder 524124 (8-Port). Die Spezifikationen finden Sie auf www.intellinet-network.com. ANSCHLÜSSE • Alle Ports unterstützen Auto-MDI/MDI-X Funktionalität, daher können Sie ein Crossover- oder Nicht-Crossover UTP-/STP-Kabel verwenden, um die RJ45-Ports mit PCs, Routern, Hubs, anderen Switchen etc. zu verbinden.
PAGE 4
Switch Gigabit Ethernet • Manual del usuario Español Gracias por comprar el Switch Gigabit Ethernet de INTELLINET NETWORK SOLUTIONS™, Modelo 524117 (5 puertos) ó 524124 8 puertos). Para más especificaciones, visite www.intellinet-network.com. CONEXIONES • Todos los puertos del switch soportan Auto-MDI/MDI-X, puede utilizar cable directo o cruzado UTP/STP para conectar los puertos RJ45 a la PC, router, hub, otros switches, etc.
PAGE 5
Commutateur Gigabit Ethernet • Manuel de l’utilisateur Français Merci d’avoir acheté le Commutateur Gigabit Ethernet INTELLINET NETWORK SOLUTIONS™, modèle 524117 (5 ports) ou 524124 (8 ports). Vous trouvez les spécifications sur www.intellinet-network.com. CONNEXIONS • Tous les ports de ce commutateur supportent la fonctionnalité Auto-MDI/ MDI-X, donc vous pouvez utiliser des câbles UTP/STP croisés ou non-croisés pour connecter les ports RJ45 aux PCs, routeurs, hubs, d’autres commutateurs etc.
PAGE 6
Przełącznik Ethernet Gigabit • Instrukcja użytkownika Polski Dziękujemy za zakup Przełącznika Ethernet Gigabit INTELLINET NETWORK SOLUTIONS™ model 524117 (5-portowy) lub 524124 (8-portowy). Pełną specyfikację techniczną produktu znajdziecie Państwo na stronie www.intellinet-network.com. PODŁĄCZENIE • Wszystkie porty przełącznika obsługują auto-krosowanie MDI/MDI-X, możliwe więc jest użycie kabla prostego lub krosowanego, aby połączyć porty RJ45 z komputerami, routerami, czy innymi przełącznikami.
PAGE 7
Gigabit Ethernet Switch • Manuale d’istruzione Italiano Grazie per aver scelto il Gigabit Ethernet Switch INTELLINET NETWORK SOLUTIONS™, Modello 524117 (5-porte) o 524124 8-porte). Per ulteriori specifiche, visitare il sito www.intellinet-network.com. CONNESSIONI • Tutte le porte sullo switch supportano la funzionalità Auto-MDI/MDI-X, così si possono usare sia cavi dritti che incrociati UTP/STP per collegare le porte RJ45 ai PC, router, hub, altri switch, etc.
PAGE 8
WASTE ELECTRICAL & ELECTRONIC EQUIPMENT Disposal of Electric and Electronic Equipment (applicable in the European Union and other European countries with separate collection systems) ENGLISH This symbol on the product or its packaging indicates that this product shall not be treated as household waste. Instead, it should be taken to an applicable collection point for the recycling of electrical and electronic equipment.
PAGE 9
WARRANTY INFORMATION ENGLISH — For warranty information, go to www.intellinet-network.com/warranty. DEUTSCH — Garantieinformationen finden Sie hier unter www.intellinet-network.com/warranty. ESPAÑOL — Si desea obtener información sobre la garantía, visite www.intellinet-network.com/warranty. FRANÇAIS — Pour consulter les informations sur la garantie, rendezvous à l’adresse www.intellinet-network.com/warranty. POLSKI — Informacje dotyczące gwarancji znajdują się na stronie www.intellinet-network.
PAGE 10
REGULATORY STATEMENTS FCC Class A This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of Federal Communications Commission (FCC) Rules. These limits are designed to provide reasonable protection against harmful interference in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
