Intel
®
Server Board S5400SF TPS Server Management
Revision 2.02
Intel order number: D92944-007
47

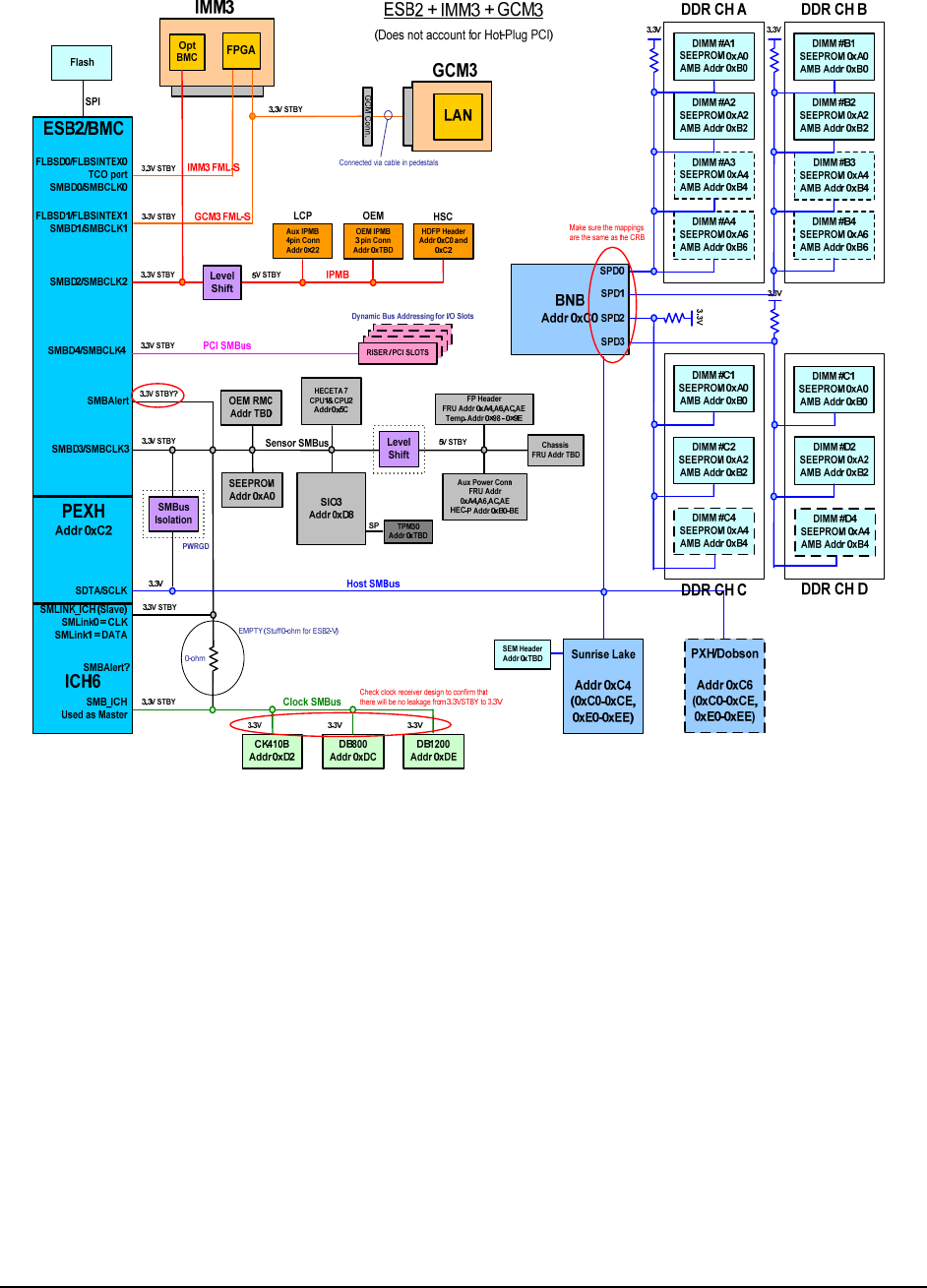

Figure 11. SMBus Block Diagram
4.1 Intel
®
6321ESB I/O Controller Hub Integrated Baseboard Management
Controller (Integrated BMC) Feature Set
This server board supports the following Integrated Baseboard Management Controller features
of the Intel
®
6321ESB I/O Controller Hub.
4.1.1 IPMI 2.0 Features
Integrated Baseboard management controller (Integrated BMC) functionality
Watchdog timer
Messaging support, including support for command bridging and user/session
Chassis device functionality, including support for power/reset control and BIOS boot
flags
Platform event trap (PET) SNMP alerts via LAN interfaces
