3.2.3.2 DIMM Population Rules and Supported DIMM Configurations
Intel supported DIMM population configurations for this server board are shown in the following
table:
Supported and Validated configuration : Slot is populated
Supported but not validated configuration : Slot is populated
Slot is not populated

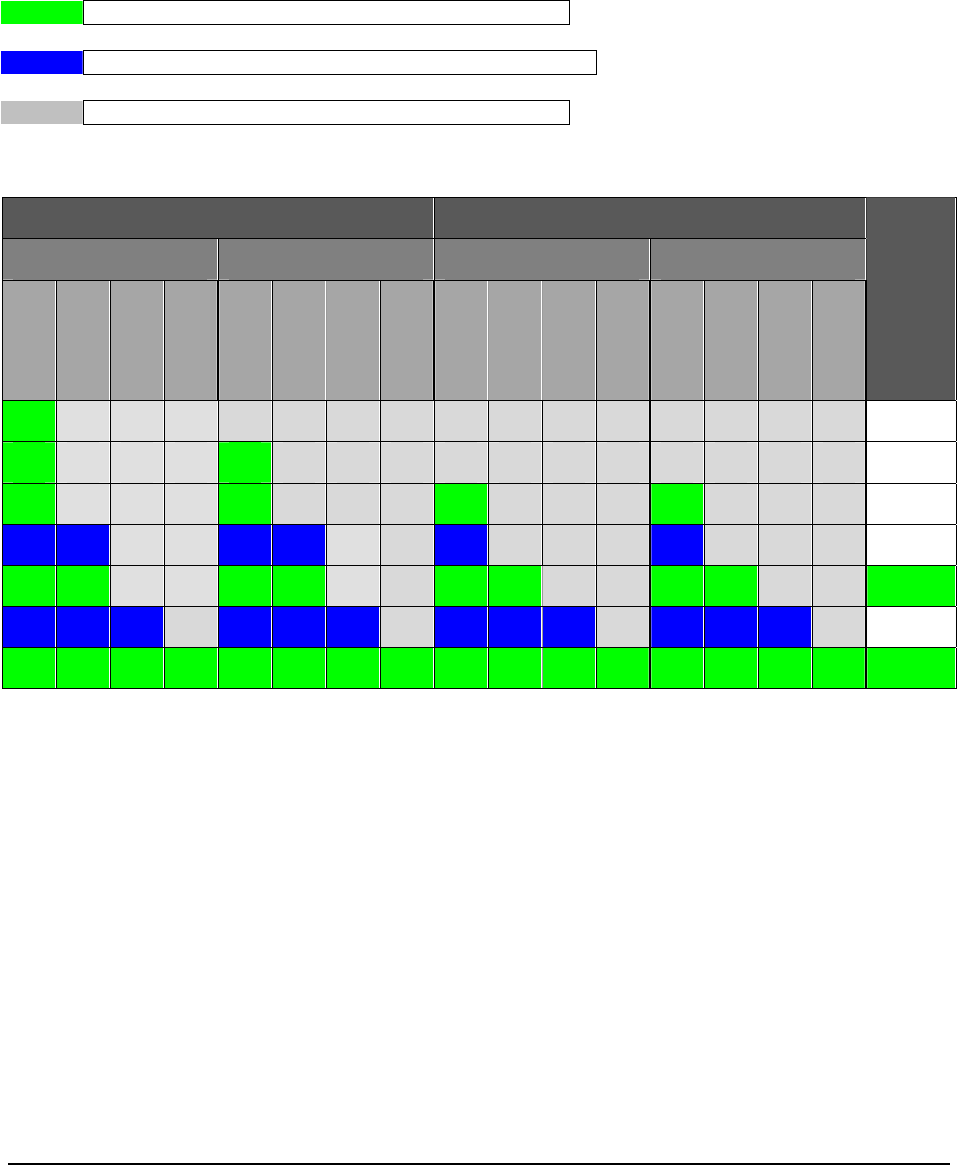

Table 8. Supported DIMM Population Configurations
Branch 0 Branch 1
Channel A Channel B Channel C Channel D
DIMM_A1
DIMM_A2
DIMM_A3
DIMM_A4
DIMM_B1
DIMM_B2
DIMM_B3
DIMM_B4
DIMM_C1
DIMM_C2
DIMM_C3
DIMM_C4
DIMM_D1
DIMM_D2
DIMM_D3
DIMM_D4
Sparing
Possible
No
No
No
No
Yes (0, 1)
Yes (0,1)
Yes (0, 1)
Notes:
1. Single channel mode is only tested and supported with a 512 MB x8 FBDIMM installed in DIMM Slot A1.
2. The supported memory configurations must meet the population rules defined below.
3. For best performance, the number of DIMMs installed should be balanced across both memory
branches. For example, a four-DIMM configuration performs better than a two-DIMM configuration and
should be installed in DIMM Slots A1, B1, C1, and D1; an eight-DIMM configuration performs better
then a six-DIMM configuration.
4. Although mixed DIMM capacities between channels are supported, Intel does not validate DIMMs in
mixed DIMM configurations.
