Functional Architecture Intel
®
Server Board S5400SF TPS
Revision 2.02
Intel order number: D92944-007
18
TP02091
Heatsink assembly
Thermal Interface
Material (TIM)
Server Board
CEK Spring
Chassis
AF002163

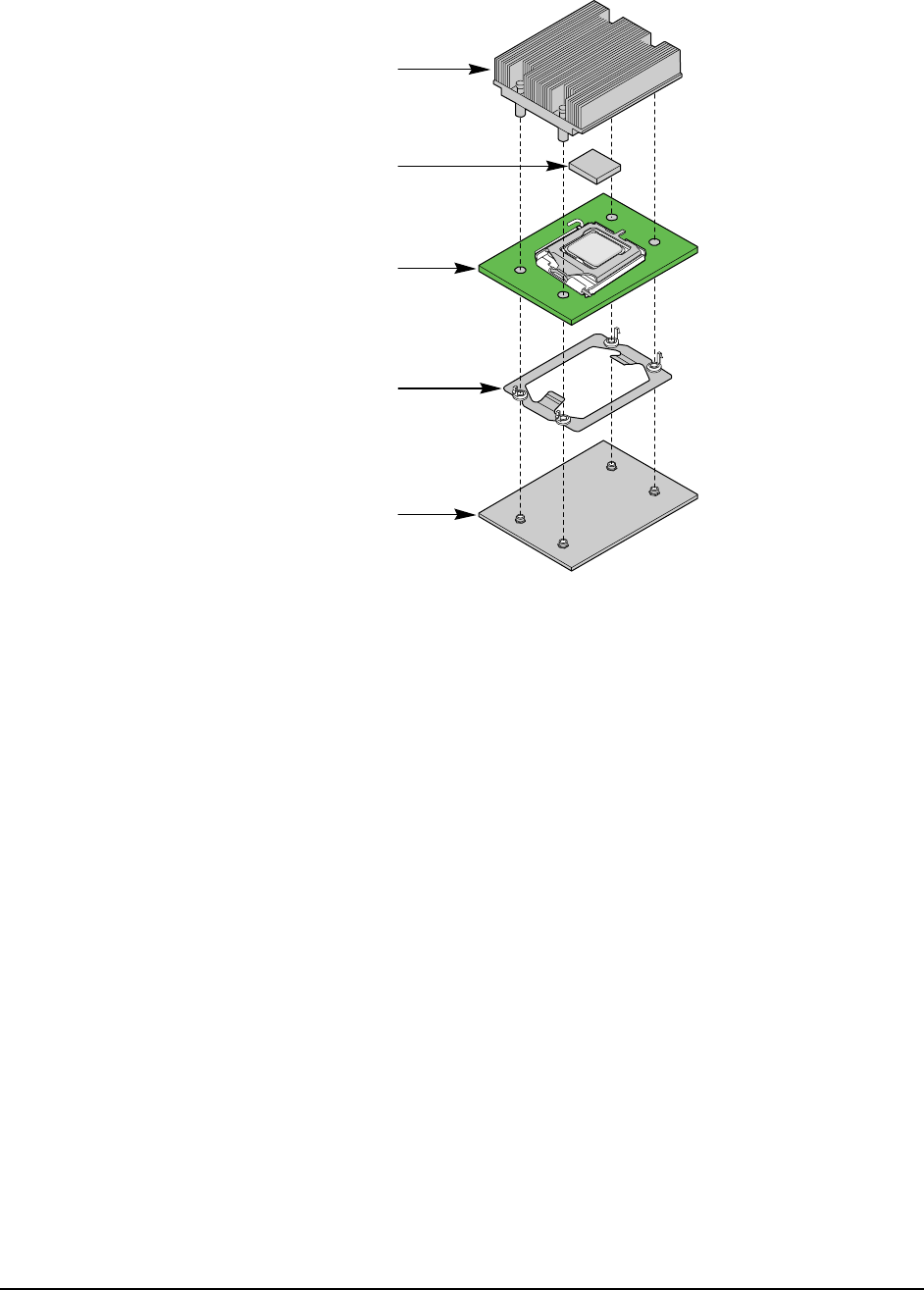

Figure 6. CEK Processor Mounting
3.2 Intel
®
5400 Memory Controller Hub Chipset (Intel
®
5400 MCH Chipset)
This section describes the general functionality of the memory controller hub as it is
implemented on the Intel
®
Server Board S5400SF.
The Memory Controller Hub (MCH) is a single 1520-pin FCBGA package, which includes the
following core platform functions:
Processor Front-Side Buses
System Memory Controller
Enterprise Southbridge Interface
PCI Express* Ports
Power Management
FBD Thermal Management
SMBus Interface
Additional information about the MCH functionality can be obtained from the Intel
®
5400
Memory Controller Hub External Design Specification.
