Appendix F: 1U PCI Express* Gen 2 Riser Card Intel
®
Server Board S5400SF TPS
Revision 2.02
Intel order number: D92944-007
168
Appendix F: 1U PCI Express* Gen 2 Riser Card
As used in the Intel
®
Server System SR1560SF, Intel makes a 1U PCI Express* Gen 2 x16 riser card
available for this server board. The following mechanical drawing is for reference purposes only.

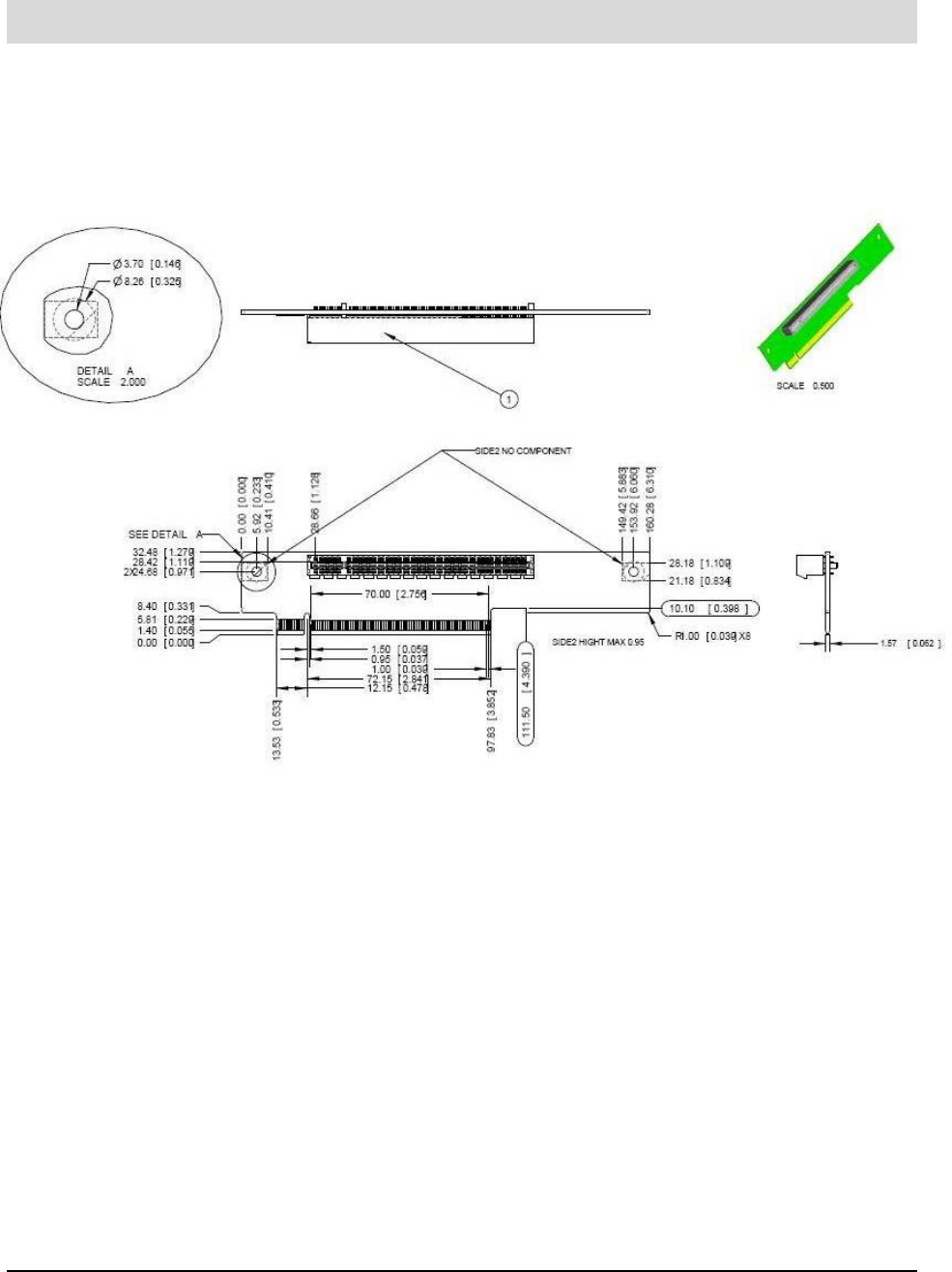

Figure 56. 1U PCI Express* Gen 2 Riser Card Mechanical Drawing
