Appendix E: Supported Intel® Server Chassis
The Intel
®
Server Board S5400SF is supported in the following Intel high-density rack mount server
chassis: Intel
®
Server Chassis SR1560.
More details can be found by referencing the Intel
®
Server System SR1560SF Technical Product
Specification (TPS).
AF002387

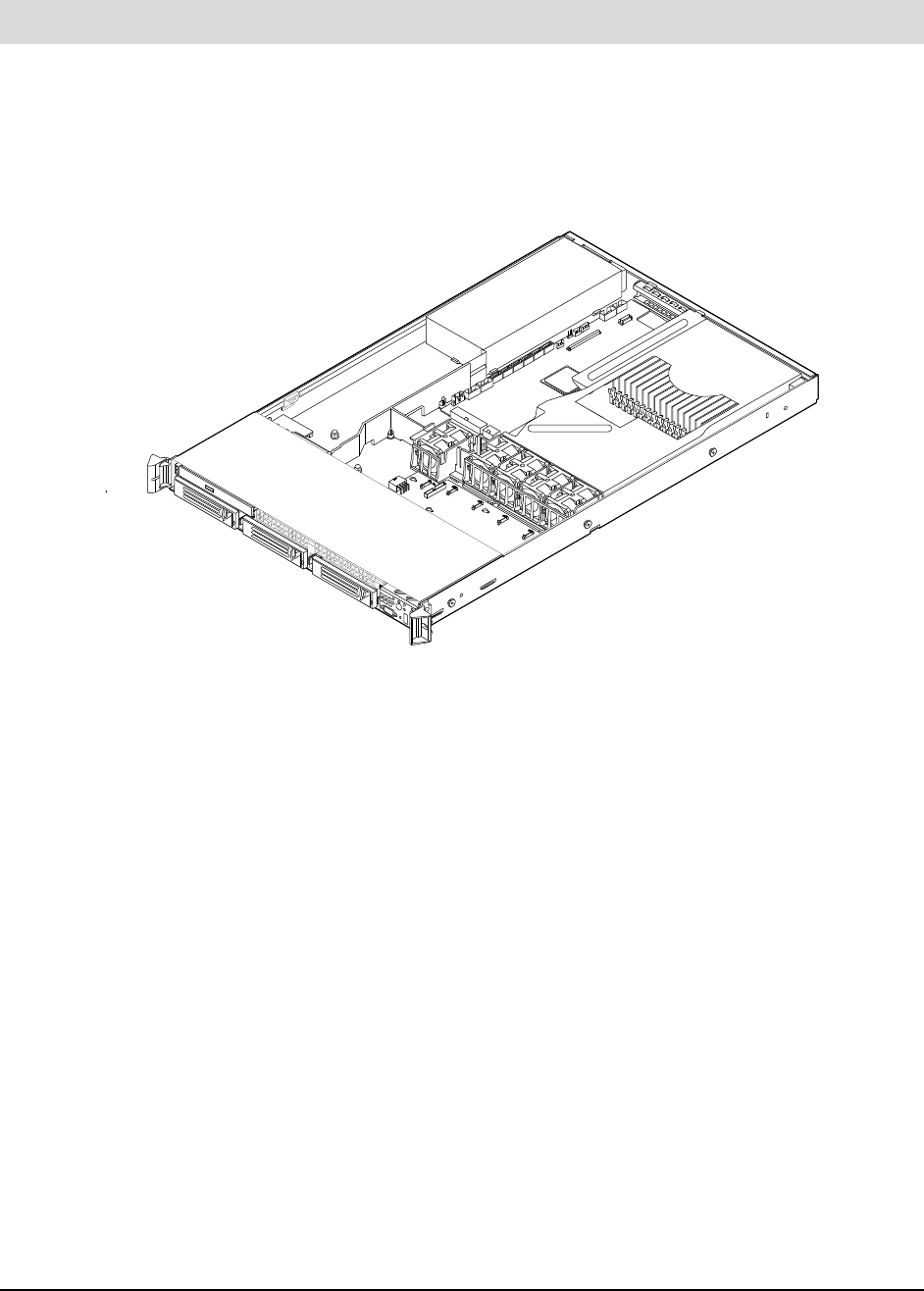

Figure 55. 1U – Intel
®
Server System SR1560SF Overview
Intel
®
Server System SR1560SF feature set:
1U rack mount server chassis
600 Watt non-redundant power supply
Fixed mount or hot-swap hard drive configuration options
- Option to support up to two fixed mount SATA hard disk drives
- Options to support up to three hot swap SAS or SATA hard disk drives
One PCI Express* Gen 2 riser card with one x16 PCI Express* slot
Drive bay to support one slimline optical drive
Five non-redundant dual-rotor high-speed managed system fans
