Regulatory and Certification Information Intel
®
Server Board S5400SF TPS
Revision 2.02
Intel order number: D92944-007
156

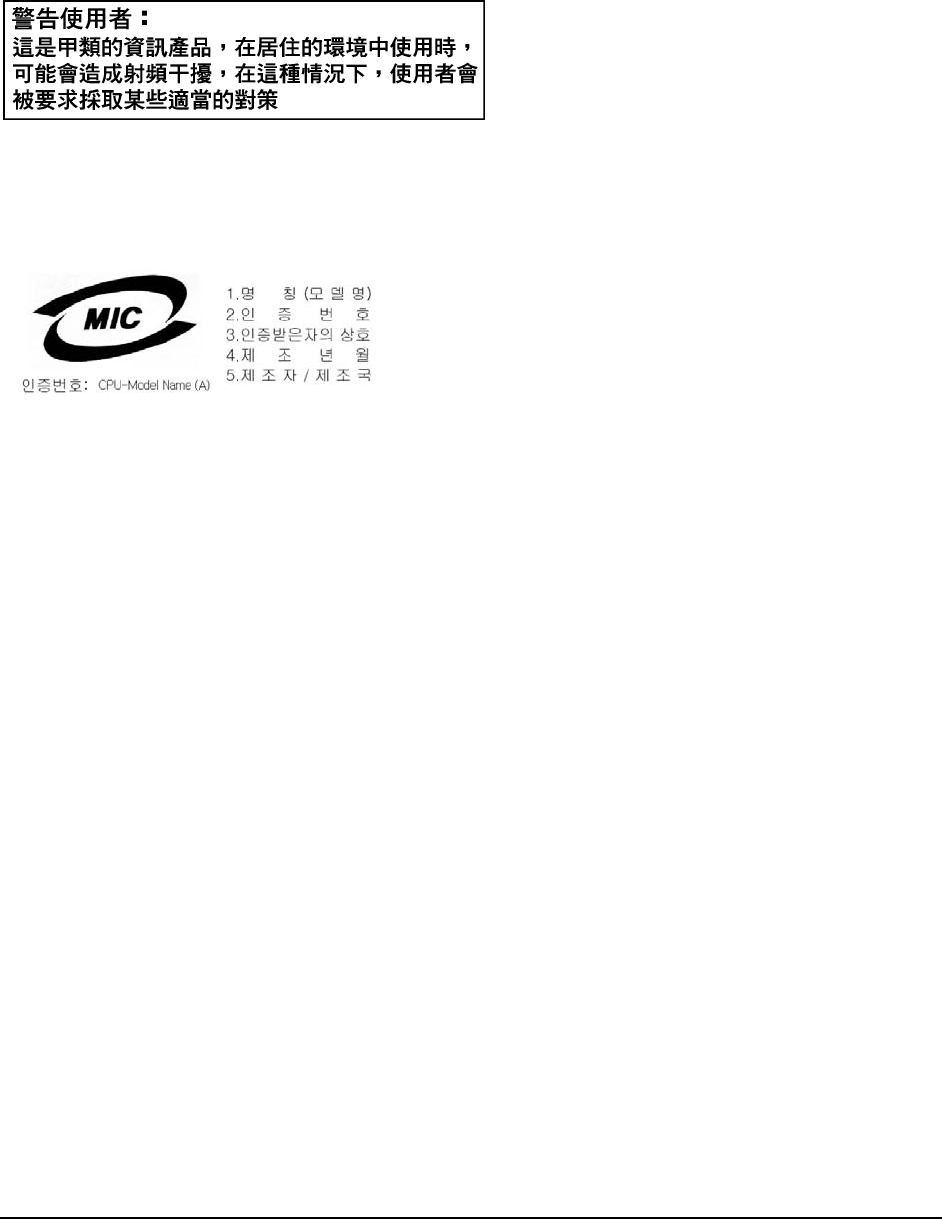

10.2.5 Taiwan Declaration of Conformity (BSMI)
The BSMI Certification Marking and EMC warning is located on the outside rear area of the
product.
10.2.5.1 Korean Compliance (RRL)
English translation of the notice above:
1. Type of Equipment (Model Name): On License and Product
2. Certification No.: On RRL certificate. Obtain certificate from local Intel representative
3. Name of Certification Recipient: Intel Corporation
4. Date of Manufacturer: Refer to date code on product
5. Manufacturer/Nation: Intel Corporation/Refer to country of origin marked on product
